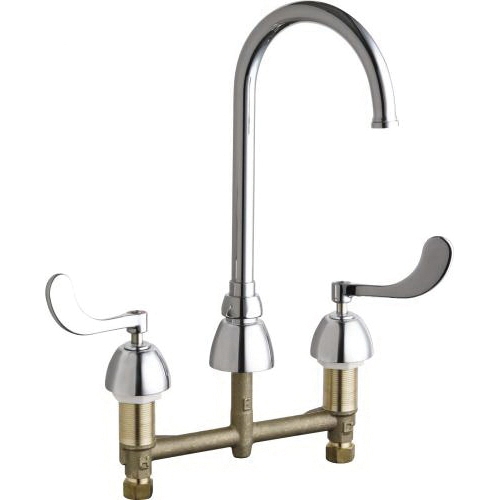

Chicago Faucet 786-GN2FCABCP

Polished Chrome Brass 2-Handle Swing Gooseneck Widespread Manual Kitchen Sink Faucet, 1.5 gpm, 1/2 in NPSM, 8 in Centers

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: 786-200981AB
  • MPN: 786-GN2FCABCP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-3/8 in
Faucet Center Size      :      8
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      NPSM
Faucet Mount      :      Deck
Finish      :      Polished Chrome
Flow Rate      :      1.5 gpm
Handle Type      :      Wristblade Lever
Height      :      11-5/8 in
Item Name      :      Kitchen Sink Faucet
Material      :      Brass
Number of Handles      :      2
Number of Holes      :      3
Spout Height      :      8 in
Spout Reach      :      5-1/4 in
Spout Type      :      Swing, Gooseneck
Type      :      Widespread, Manual
Valve Type      :      Ceramic Disc
  • 1/4-turn compression operating cartridge
  • 1/2 in NPSM supply inlets and coupling nut for 3/8 or 1/2 in flexible riser
  • 5-1/4 in flow control rigid/swing gooseneck spout
  • 4 in vandal-proof wrist blade handles
  • Ecast design provides durable construction with total lead content equal to or less than 0.25% by weighted average
  • 20 - 125 psi rated operating pressure
  • 40 - 140 deg F rated operating temperature
  • Lifetime limited faucet warranty
  • 5-years limited cartridge warranty
  • 1-year limited finish warranty

Standards/Certifications: cCSAus approved, ASME A112.18.1, CSA B125.1, ANSI/NSF 61 and 372 certified, section 9 by CSA, California health and safety code 116875 (AB1953-2006), Vermont bill S.152, ADA complaint, ICC/ANSI A117.1, CALGreen

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9923_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS9923_Spec.pdf
