Elkhart 10075366

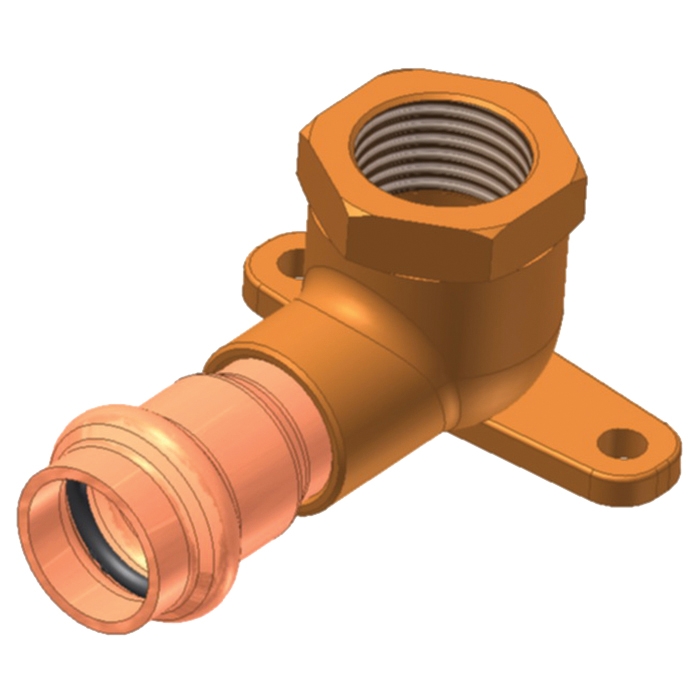

ApolloPress 8707-3-5 Copper 90 deg Small Diameter Drop Ear Elbow, 1/2 in, Press x FNPT, Lead-Free

  • Manufacturers: Elkhart Products Corporation
  • Brand Name: Elkhart
  • PN: 8707-3-5.12
  • MPN: 10075366
  • UPC: 683264753662
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      1/2 in
Connection Type      :      Press x FNPT
Item Name      :      Drop Ear Elbow
Length      :      2.77 in
Material Specifications      :      UNS C12200
Material      :      Copper
Model      :      8707-3-5
Pressure Rating      :      300 psi
Sub Brand      :      ApolloPress
Temperature Rating      :      33 - 250 deg F
Type      :      Small Diameter
  • Lead-free dezincification-resistant copper body and an EPDM O-ring
  • Leak before press technology
  • Ridgid XL press tool compatible
  • Made in USA
  • Silicone lubrication
  • 5-years warranty

Standards/Certifications: cUPC listed, ARRA compliant, ASNI/ASME B1.20.01, NSF/ANSI 61 and 372, IAPMO 4861, 6174 and N-4951 certified

Applications: For residential and industrial
