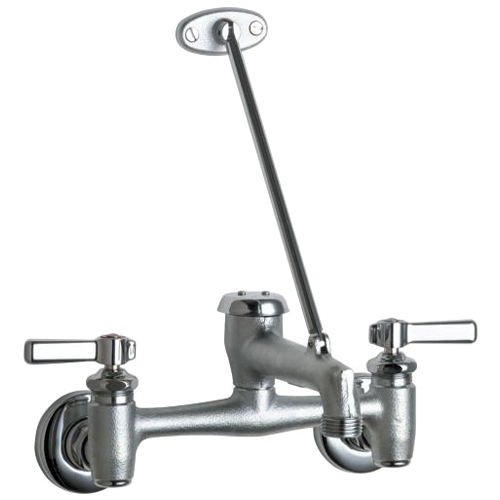

Chicago Faucet 897-RCF

Rough Chrome Brass 2-Handle Manual Service Sink Faucet, 12 gpm, 1/2 in FNPT x 3/4 in MHT, 7-5/8 - 8-3/8 in Centers

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: 897-RCF
  • MPN: 897-RCF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      1/2 in FNPT x 3/4 in MHT
Faucet Center Size      :      7-5/8 - 8-3/8 in
Finish      :      Rough Chrome
Flow Rate      :      12 gpm
Handle Type      :      Lever
Item Name      :      Service Sink Faucet
Material      :      Brass
Mounting      :      Wall
Number of Faucet Holes      :      2
Number of Handles      :      2
Overall Height      :      10-3/4 in
Spout Height      :      1-1/8 in
Spout Reach      :      8 in
Type      :      Manual
Valve Type      :      Ceramic Disc
  • 1/4-turn operating Ceramic cartridge
  • 2-3/8 in vandal-proof lever handles
  • 1/2 in NPT adjustable female union nut supply arms, 3/4 in male hose thread outlet
  • Integral stop valves for servicing the product
  • Atmospheric vacuum breaker, not intended for continuous pressure applications
  • Vacuum breaker spout with pail hook and wall brace
  • 20 - 125 psi rated operating pressure
  • 40 - 140 deg F rated operating temperature
  • Lifetime limited faucet warranty
  • 5-years limited cartridge warranty
  • 1-year limited finish warranty

Standards/Certifications: ASME A112.18.1, CSA B125.1, ADA compliant, ICC/ANSI A117.1
