Chicago Faucet 1100-G2E3-317AB
Send Print
  1. pin-int

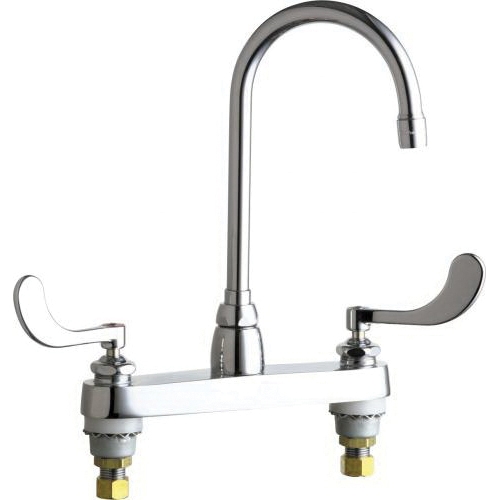

Chicago Faucet 1100-G2E3-317AB

Chrome Brass 2-Handle Swing Gooseneck Widespread Manual Kitchen Sink Faucet, 2.2 gpm, 1/2 in NPSM, 8 in Centers

  • Manufacturers: Chicago Faucet
  • Brand Name: Chicago Faucet
  • PN: 1100-GN2A-E3-317
  • MPN: 1100-G2E3-317AB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-1/2 in
Faucet Center Size      :      8
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      NPSM
Faucet Mount      :      Deck
Finish      :      Chrome
Flow Rate      :      2.2 gpm
Handle Type      :      Wristblade Lever
Height      :      12 in
Item Name      :      Kitchen Sink Faucet
Material      :      Brass
Number of Handles      :      2
Number of Holes      :      2
Spout Height      :      8 in
Spout Reach      :      5-3/8 in
Spout Type      :      Swing, Gooseneck
Type      :      Widespread, Manual
Valve Type      :      Quarter-Turn Compression
  • Pressure compensating softflo aerator
  • 1/4-turn compression operating cartridge
  • Ecast design provides durable construction with total lead content equal to or less than 0.25% by weighted average
  • Lifetime limited faucet warranty
  • 5-years limited cartridge warranty
  • 1/2 in NPSM supply inlets and coupling nut for 3/8 or 1/2 in flexible riser
  • 5-1/4 in rigid/swing gooseneck spout
  • 20 - 125 psi rated operating pressure
  • 40 - 140 deg F rated operating temperature

Standards/Certifications: cCSAus certified, ASME A112.18.1, CSA B125.1, ANSI/NSF 61 and 372, ICC/ANSI A117.1, Vermont Bill S.152, ADA complaint

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2526_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2526_Spec.pdf
