Domestic Manufacturer 0310029400

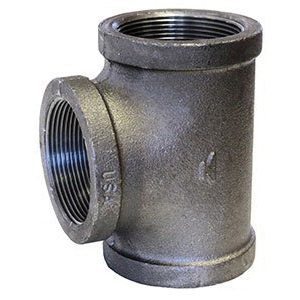

1105 Class 150 SCH STD Black Malleable Iron Tee, 1/4 in, FNPT, Domestic

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: BT14
  • MPN: 0310029400
  • UPC: 690291345647
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/4 in
Connection Type      :      FNPT
Finish      :      Black
Item Name      :      Tee
Length      :      1-5/8 in
Material Specifications      :      ASTM A197
Material      :      Malleable Iron
Model      :      1105
Pressure Class      :      Class 150
Pressure Rating      :      300 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil strict quality standards. All Anvil Class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in and larger are 100% gas tested at a minimum of 100 psi.

Standards/Certifications: ASME B16.3, ASME B1.20.1, cULus listed, FM approved, NSF/ANSI 61 certified
