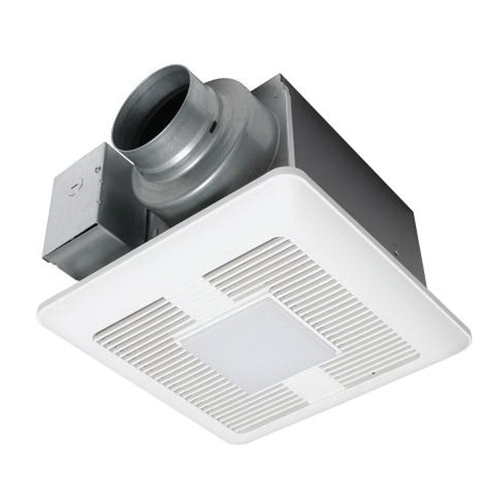

Panasonic FV-0511VQL1

WhisperCeiling DC 26 g Zinc-Aluminum-Magnesium Ventilation Fan with Light, 4 or 6 in, 120 VAC, 50/80/110 cfm

  • Manufacturers: Panasonic Corporation
  • Brand Name: Panasonic
  • PN: FV-0511VQL1
  • MPN: FV-0511VQL1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.3 A
Dimension      :      10-1/4 in L x 10-1/4 in W x 7-3/8 in H
Flow Rate      :      50/80/110 cfm
Frequency Rating      :      60 Hz
Grille Size      :      13 in L x 13 in W
Housing Material      :      26 ga Zinc-Aluminum-Magnesium
Item Name      :      Ventilation Fan with Light
Motor Type      :      ECM
Mounting      :      Ceiling
Number of Speeds      :      1
Power Rating      :      3.9 W at 50 cfm/6 W at 80 cfm/10.9 W at 110 cfm
RPM      :      768 rpm at 50 cfm/867 rpm at 80 cfm/1016 rpm at 110 cfm
Size      :      4 or 6 in
Sones      :      Less Than 0.3 sones at 50/80 cfm/0.4 sones at 110 cfm
Sub Brand      :      WhisperCeiling DC
Voltage Rating      :      120 VAC

WhisperCeiling DC precision spot ventilation fan/light with built-in Pick-A-Flow speed selector switch allows you to select your required airflow (50-80-110 cfm). Features an ECM motor with SmartFlow technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

  • Revolutionary ECM motor with SmartFlow technology for optimum CFM output
  • Pick-A-flow speed selector 1 fan
  • Flex-Z fast bracket provides flexible, fast and trouble-free installation, even from below the ceiling
  • Lighted models incorporate one long life, 10 W dimmable LED chip panel with less than 1 W LED night light for warm, energy-efficient illumination
  • Elegant grille design compliments the aesthetics of any bathroom
  • Enclosed brushless ECM motor technology rated for continuous run
  • Fan ventilation rates shall be manually adjustable for 50-80-110 cfm
  • Fan shall be UL and CUL listed for tub/shower enclosure when GFCI protected and used in insulated ceiling (type I.C.)
  • Motor equipped with thermal cut-off fuse
  • Removable with permanently lubricated plug-in motor
  • Integrated dual 4 or 6 in Dia duct adapter
  • Built-in damper reduces back drafting and helps with blower door testing
  • Built-in metal flange provides blocking for penetrations through drywall as an air barrier, and assists with the decrease in leakage in the building envelope during blower door testing
  • Articulating and expandable installation bracket up to 24 in
  • WhisperCeiling DC is UL listed for use with the Panasonic ceiling radiation damper (model #: PC-RD05C5, sold separately)
  • Attractive design using polypropylene material
  • Attaches directly to housing with torsion springs
  • ECM motor: 6-years from original purchase date
  • LED panel: 5-years from original purchase date
  • All parts: 3-years from original purchase date

Standards/Certifications: Energy Star certified, HVI, cULus listed, California Title 24 compliant, ISO 9001 standard, Washington VIAQ code

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16067_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16067_Spec.pdf
