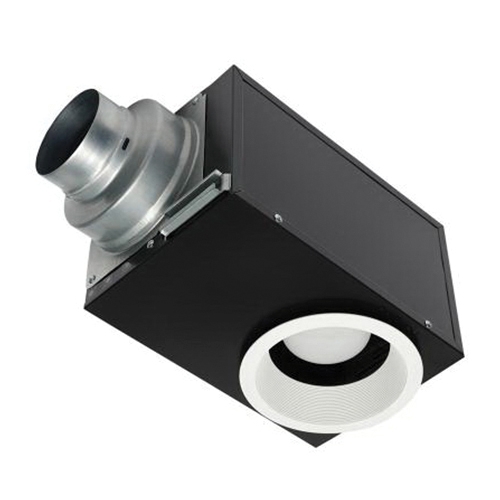

Panasonic FV-08VRE2

WhisperRecessed LED Galvanized 26 ga Steel Ventilation Fan with Light, 4 and 6 in, 120 VAC, 80 cfm

  • Manufacturers: Panasonic Corporation
  • Brand Name: Panasonic
  • PN: FV-08VRE2
  • MPN: FV-08VRE2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.19 A
Dimension      :      8-1/4 in L x 12-3/4 in W x 7-1/2 in H
Finish      :      Galvanized
Flow Rate      :      80 cfm
Frequency Rating      :      60 Hz
Housing Material      :      26 ga Steel
Item Name      :      Ventilation Fan with Light
Mounting      :      Ceiling
Number of Speeds      :      1
Power Rating      :      18.5 W
RPM      :      1342 rpm
Size      :      4 and 6 in
Sones      :      1 sones
Sub Brand      :      WhisperRecessed LED
Voltage Rating      :      120 VAC

WhisperRecessed LED incorporates a powerful, yet quiet 80 cfm fan behind an elegant recessed LED light. Includes a dimmable 11 W, Energy Star 2.0 certified GU24 base LED lamp, beautiful lighting with 6-1/2 in aperture and advanced luminaire design. Can be used to comply with the latest codes and standards.

  • Architectural grade recessed fan/LED light
  • Ideal for use in bathrooms, living rooms or laundry rooms
  • Quiet and powerful 80 cfm ventilation hidden above the ceiling
  • Beautiful lighting with 6-1/2 in aperture and advanced luminaire design
  • (1) replaceable 11 W, Energy Star 2.0 certified GU24 base LED lamp
  • 4-pole fully enclosed condenser motor rated for continuous operation
  • Fan shall be UL listed for tub/shower enclosure when GFCI protected and used in insulated ceiling (type I.C.)
  • Motor equipped with thermal cut-off fuse
  • Removable with permanently lubricated plug-in motor
  • Rust-proof epoxy and polyester resin coating, 26 ga galvanized steel body
  • Integrated dual 4 or 6 in Dia duct adapter
  • Metal flange around recessed light aperture helps provide an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
  • Built-in backdraft damper
  • Expandable extension bracket up to 24 in
  • Double hanger bar system allows for ideal positioning
  • Attractive design using polypropylene material
  • Attaches directly to housing with torsion springs
  • 2700 K warm white/greater than 90 CRI/750 Lumens/68 Lumens/W/25000 hr rated average life
  • LED lamp is dimmable
  • All parts: 3-years from original purchase date
  • LED: 5-years from original purchase date

Standards/Certifications: Energy Star certified, HVI, cULus listed, CALGreen, California Title 24 compliant, ISO 9001 standard, Washington VIAQ code, FCC part 15 compliant
