T&S Brass B-0230-LN

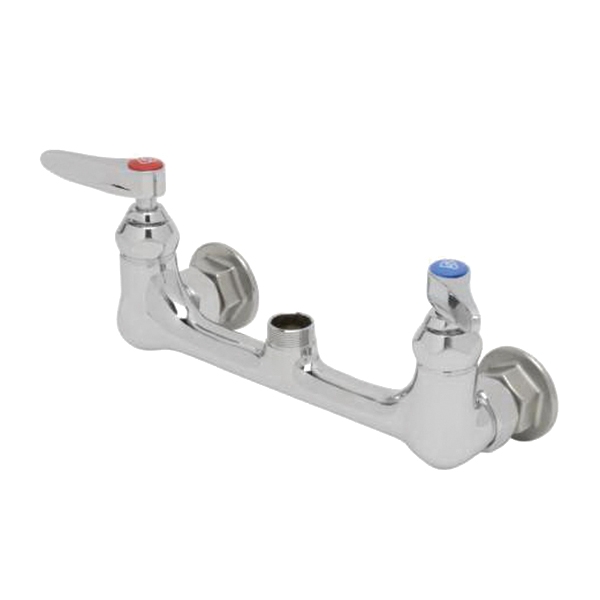

Polished Chrome Brass 2-Handle Double Pantry Swivel Base Faucet, 28.63 gpm at 60 psi, 1/2 in FNPT, 8 in Centers

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TSB230LN
  • MPN: B-0230-LN
  • UPC: 671262002691
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Faucet Center Size      :      8 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      FNPT
Faucet Mount      :      Wall
Finish      :      Polished Chrome
Flow Rate      :      28.63 gpm at 60 psi
Handle Type      :      Lever
Height      :      3-11/16 in
Item Name      :      Double Pantry Swivel Base Faucet
Material      :      Brass
Number of Handles      :      2
Number of Holes      :      2
Valve Type      :      Quarter-Turn Ceramic
  • 8 in wall mount mixing faucet with polished chrome-plated brass body
  • Swivel outlet accepts T&S swing nozzles
  • Lock washer provided for rigid application
  • 1/4-turn eterna compression cartridges with spring checks to prevent cross flow of water
  • Lever handle with color coded indexes
  • 1/2 in NPT female eccentric inlets with 2 in flanges
  • Adjustable centers from 7-3/4 - 8-1/4 in
  • 20 - 125 psi pressure
  • 40 - 140 deg F temperature
  • 1-year limited warranty
  • California proposition #65 warning

Standards/Certifications: cCSAus certified, ASME A112.18.1, CSA B125.1, ANSI/NSF 61 and 372, ANSI A117.1, BAA/ARRA, ADA complaint

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28351_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28351_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28351_Tech.pdf
