Victaulic W140007PE1

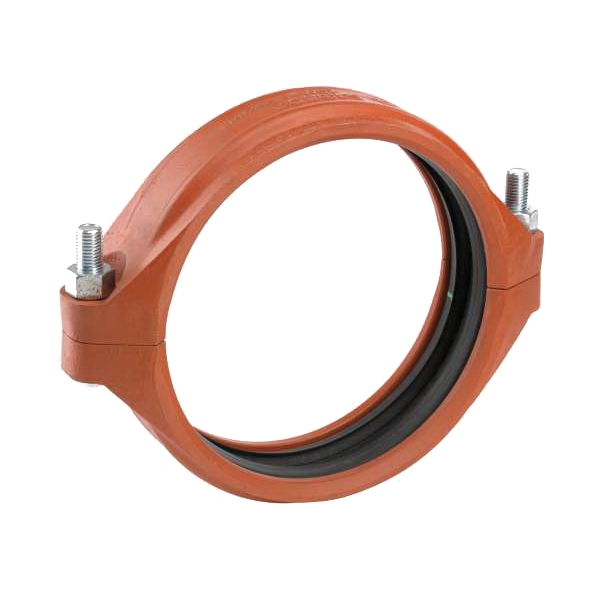

AGS W07 Orange Enamel Ductile Iron Grooved Rigid Coupling with Grade "E" FlushSeal™ EPDM Gasket, 14 in

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI07E.14
  • MPN: W140007PE1
  • UPC: 688304879111
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      14 in
Finish      :      Orange Enamel
Item Name      :      Grooved Rigid Coupling with Grade "E" FlushSeal™ EPDM Gasket
Length      :      20.63 in
Material Specifications      :      ASTM A536, Grade 65-45-12
Material      :      Ductile Iron
Maximum End Load      :      55800 lb
Model      :      W07
Outside Diameter      :      14 in
Pressure Rating      :      350 psi
Sub Brand      :      AGS
Temperature Rating      :      -30 to 230 deg F
  • First flat pad, metal-to-metal
  • Unique wedge-shaped key profile increases allowable pipe end separation, resulting in easier assembly
  • Features lifting lugs integrated into the housings to help ease handling during installation
  • (2) 1 x 5-1/2 in bolts

Standards/Certifications: cULus listed, FM approved

Applications: For valve connections, machinery rooms, and long straight runs

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29255_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29255_Spec.pdf
