Victaulic L010108PE0

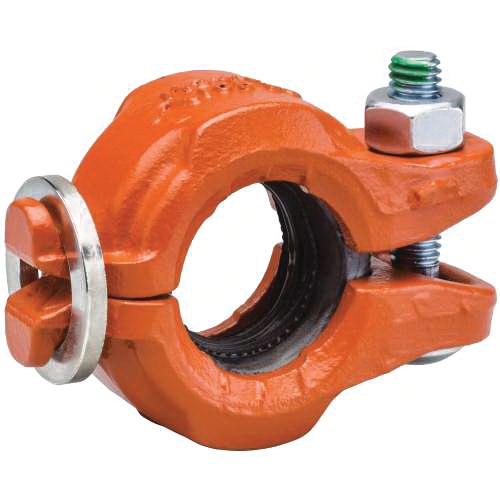

FireLock IGS Installation-Ready 108 Orange Enamel Ductile Iron Grooved Rigid Coupling with Grade "E" EPDM Type-A Vic-Plus™ Pre-Lubricated Gasket, 1 in

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: VI108.1
  • MPN: L010108PE0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Finish      :      Orange Enamel
Item Name      :      Grooved Rigid Coupling with Grade "E" EPDM Type-A Vic-Plus™ Pre-Lubricated Gasket
Length      :      2.58 in
Material Specifications      :      ASTM A536, Grade 65-45-12
Material      :      Ductile Iron
Model      :      108
Outside Diameter      :      1.315 in
Pressure Rating      :      365 psi
Sub Brand      :      FireLock, IGS, Installation-Ready
  • Patented 1-bolt coupling
  • Utilizes the Victaulic proprietary IGS groove specification
  • Optimized for 1 in
  • Gasket - grade "E" EPDM (type-A) Vic-Plus pre-lubricated gasket (violet color code)
  • Carbon steel oval neck track bolts meeting the mechanical property requirements of ASTM A449 (imperial) and ISO 898-1 class 9.8 (M10-M16) and class 8.8 (M20 and greater)
  • Carbon steel hex nuts meeting the mechanical property requirements of ASTM A563 grade B (imperial - heavy hex nuts) and ASTM A563M class 9 (metric - hex nuts)
  • Track bolts and heavy hex nuts are zinc electro-plated per ASTM B633 FE/ZN5, finish type III (imperial) or type II (metric)
  • (1) 3/8 x 2 in bolt

Standards/Certifications: cULus listed, FM, LPCB, VDS approved
