Amana PTH123G35AXXX

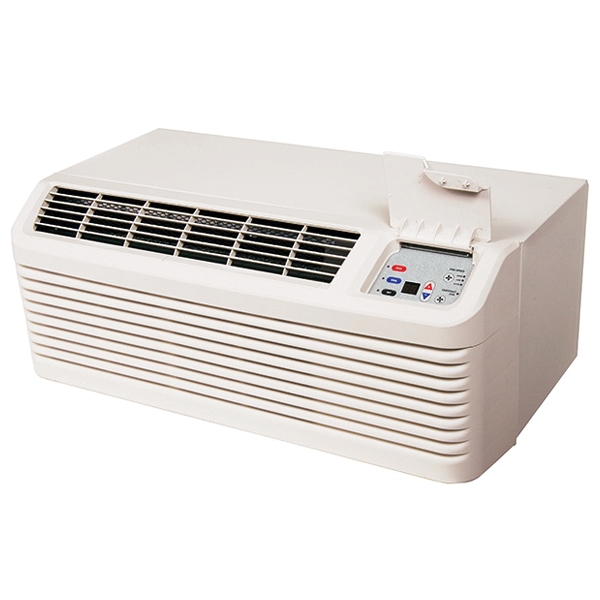

PTH 1-Stage Standard Packaged Terminal Heat Pump, 12000 Btu/hr

  • Manufacturers: Amana Corporation
  • Brand Name: Amana
  • PN: PTH123G35AXXX
  • MPN: PTH123G35AXXX
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      5.8 A
BTU Rating      :      12000 Btu/hr
CFM Rating      :      290 cfm Cool/Wet Coil, 310 cfm Dry Coil
Dehumidification      :      3.6 pts/hr
Dimension      :      42 in Lx 21-1/2 in W x 16 in H
EER      :      11
Frequency Rating      :      60 Hz
Item Name      :      Packaged Terminal Heat Pump
Phase      :      1 ph
Plug Type      :      NEMA 6-20
Refrigerant      :      R-410A
Series      :      PTH
Stages      :      1
Type      :      Standard
Voltage Rating      :      208/230 VAC
Wattage      :      3.5 kW
  • Energy-efficient
  • Quiet operation
  • Increased dehumidification capacity
  • 7-button touch pad
  • 100% run tested
  • 7-5/8 in unit front depth
  • Easy pull-out filters
  • Filter dryer for sealed system refrigerant
  • Condensate dispersion system
  • Front desk control
  • Room freeze protection
  • Easy-to-use controls
  • Easy to service with on-board LED diagnostics
  • Stonewood room front
  • Remote thermostat control
  • Extended heat pump heating
  • Zero floor clearance
  • 30 s fan-off delay
  • Compressor lock-in
  • Automatic emergency heat
  • Constant fan mode
  • Hidden ventilation control
  • High-pressure switch
  • 1-year unit and 5-years parts limited warranty

Standards/Certifications: AHRI certified
