Moen 7185ORB

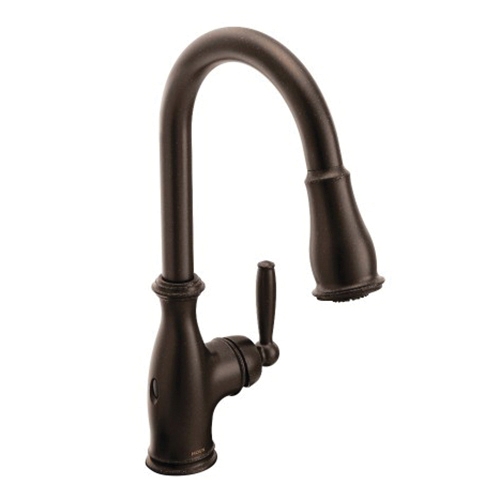

BrantFord 7185 Oil-Rubbed Bronze Metal 1-Handle Transitional High Arc Pull-Down Kitchen Faucet, 1.5 gpm at 60 psi, 3/8 in Compression

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MO7185ORB
  • MPN: 7185ORB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      2-1/2 in
Faucet Connection Size      :      3/8 in
Faucet Connection Type      :      Compression
Faucet Mount      :      Deck
Finish      :      Oil-Rubbed Bronze
Flow Rate      :      1.5 gpm at 60 psi
Handle Type      :      Lever
Height      :      15-1/2 in
Item Name      :      Kitchen Faucet
Material      :      Metal
Number of Handles      :      1
Number of Holes      :      1 or 3
Series      :      7185
Spout Height      :      8-1/4 in
Spout Reach      :      7-7/8 in
Spout Type      :      High Arc
Sub Brand      :      BrantFord
Type      :      Transitional, Pull-Down
Valve Type      :      Ceramic Disc

Brantford kitchen and bar/prep faucets make a traditionally styled space feel truly finished. The spout enhances the curvature of the faucet body and handle for a beautiful, polished look. The pull-down spray wand offers Moen's exclusive Power Boost technology for improved functionality at your fingertips.

  • Power boost technology provides boosted water performance with the push of a button with faster clean, faster fill
  • Chrome finish is highly reflective for a mirror-like look that works with any decorating style
  • Equipped with the Reflex system for smooth operation, easy movement and secure docking of the pull-down or pull-out spray head
  • Faucet pull-down hose offers flexible water delivery and hose retracts with ease
  • Features duralock quick connect system for easy installation
  • 1-handle lever handle makes it easy to adjust the water
  • powerful rinse for heavy-duty cleaning, aerated stream for everyday cleaning, boosted stream, rinse
  • Standard design mounts on the sink or countertop
  • Meets current legislation, including AB1953 (California) and S152 (Vermont)
  • Reflex pull-down system offers smooth operation, easy movement and secure docking
  • Duralock quick connect system
  • Power boost technology provides boosted water performance with the push of a button
  • Pull-out spray with 68 in braided hose
  • Flexible supply lines with 3/8 in compression fittings
  • High arc spout provides height and reach to fill or clean large pots while the pull out wand provides the maneuverability for cleaning or rinsing
  • Temperature controlled by 100 deg arc of handle travel
  • Operates with less than 5 lb of force
  • Operates in stream or spray mode in the pull-out or retracted position
  • 1255 duralast cartridge for 1-handle faucets
  • Lifetime limited warranty against leaks, drips and finish defects to the original homeowner
  • 10-years limited warranty when used in a multifamily installation
  • 5-years limited warranty when used in a commercial installation

Standards/Certifications: UPC green approved, ASME A112.18.1, CSA B125.1, NSF 61/9 and 372 certified, California Proposition 65, IAPMO green, ADA complaint

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20022_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20022_Spec.pdf
