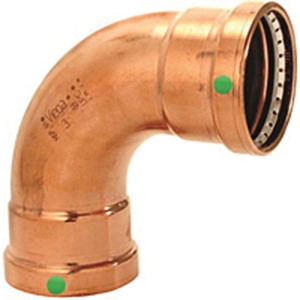

ProPress XL-C 0916XL Copper 90 deg Elbow, 2-1/2 in, Press

  • Manufacturers: Viega
  • Brand Name: Viega
  • PN: 807-C.212
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Angle      :      90 deg
Connection Size      :      2-1/2 in
Connection Type      :      Press
Item Name      :      Elbow
Material      :      Copper
Model      :      0916XL
Pressure Rating      :      200 psi
Sub Brand      :      ProPress XL-C
Temperature Rating      :      0 - 250 deg F
  • Zero-lead
  • Smart connect technology
  • EPDM sealing element
  • Must be installed with Viega ProPress XL-C rings and V2 actuator

Standards/Certifications: NSF 61G certified, IAPMO PS117, UL 213, FM class 1920, ICC LC 1002, CSA MSE-13, ABS certified, DVGW, LR, DNV, RINA, BV, KIWA listed, ICC, PHCC, NFPA 13, 13D and 13R, ASME B16 .51, U S coast guard approved

Applications: For potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler, low pressure steam and vacuum

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS23367_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22833_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22833_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22833_Tech.pdf
