Moen T6420ORB
Send Print
  1. pin-int

Moen T6420ORB

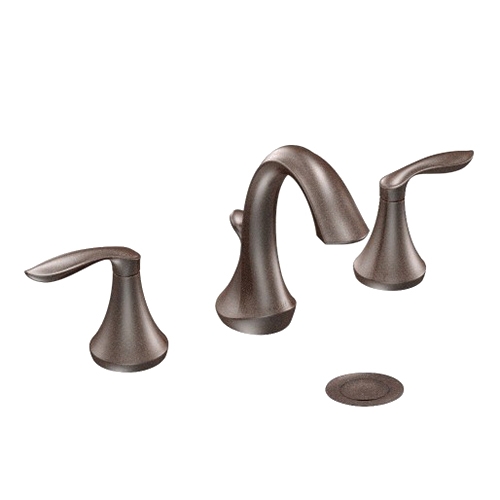

Eva T6420 Oil-Rubbed Bronze Metal 2-Handle High Arc Widespread Bathroom Faucet, 1.2 gpm at 60 psi, 1/2 in IPS, 8 - 16 in Centers

  • Manufacturers: MOEN
  • Brand Name: Moen
  • PN: MOT6420ORB
  • MPN: T6420ORB
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Deck Thickness      :      1-1/4 in
Drain Type      :      Metal Pop-Up
Faucet Center Size      :      8 - 16 in
Faucet Connection Size      :      1/2 in
Faucet Connection Type      :      IPS
Faucet Mount      :      Deck
Finish      :      Oil-Rubbed Bronze
Flow Rate      :      1.2 gpm at 60 psi
Handle Type      :      Lever
Height      :      6 in
Item Name      :      Widespread Bathroom Faucet
Material      :      Metal
Number of Handles      :      2
Number of Holes      :      3
Series      :      T6420
Spout Height      :      4 in
Spout Reach      :      4-1/8 in
Spout Type      :      High Arc
Sub Brand      :      Eva
Valve Type      :      Washerless Cartridge
  • Oil rubbed bronze finish incorporates the warmth of bronze with tumbled light and dark accents, creating an antiqued look
  • 2-handle lever handle makes it easy to adjust the water
  • Built-on the Moen M-PACT common valve system, allowing you to update the faucet style in the future without replacing any plumbing
  • Faucet handles can be installed between 8 - 16 in for a more customized widespread installation
  • Aerated flow is ideal for everyday bathroom tasks, like brushing teeth and washing hands
  • Lift rod drain assembly
  • Duralock quick connect system
  • Maximum handle rotation angle is 90 deg to full on for either handle
  • Hot side counterclockwise to open (clockwise to close)
  • Cold side clockwise to open (counterclockwise to close)
  • Lifetime limited warranty against leaks, drips and finish defects to the original consumer purchaser
  • 5-years warranty if used in commercial installations
  • LifeShine finish assures the ultimate in durability and is guaranteed not to tarnish, corrode or flake off

Standards/Certifications: ASME A112.18.1, CSA B125.1, NSF 61/9 and 372, WaterSense certified, ADA complaint

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20150_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS20150_Spec.pdf
