Hart & Cooley 050560

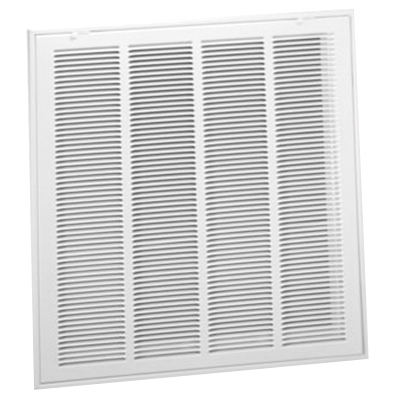

659TI Bright White Enamel Steel Lanced Face Return Air Filter Grille, 20 x 20 in

  • Manufacturers: Hart & Cooley
  • Brand Name: Hart & Cooley
  • PN: HC50560
  • MPN: 050560
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Fin Spacing      :      1/3 in
Finish      :      Bright White Enamel
Height      :      23-3/4 in
Item Name      :      Return Air Filter Grille
Length      :      23-3/4 in
Material      :      Steel
Model      :      659TI
Size      :      20 x 20 in
Type      :      Lanced Face
Width      :      4-1/4 in
  • Flush, removable face with concealed latches and hinges can be installed in any direction
  • Accepts 6 - 14 in unique tab collar (6400 series) or 6 - 16 in unique snap-in collar (5400 and 5400PP series, also accepts standard spin-in collar)
  • Frame includes (4) seismic safety connections
  • Uses standard 1 in disposable filters (not furnished)
  • Fiberglass back R-4.2 absorbs sound
  • Uses nominal 1 x 20 x 20 in disposable filter
  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1047_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS1061_Spec.pdf
