Zoeller Pumps 820-0011

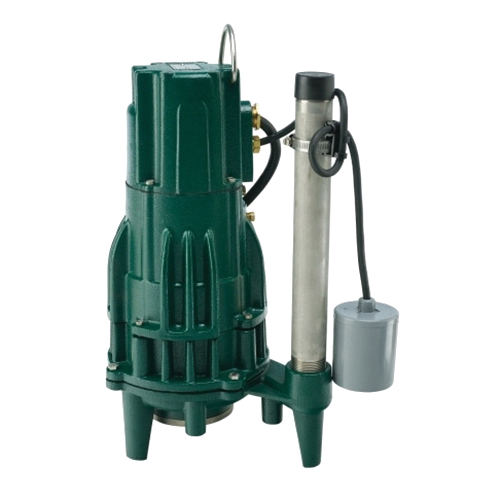

WD820 Powder Coated Epoxy Cast Iron 1-Seal Automatic Grinder Pump, 230 VAC, 2 hp, 3450 rpm, 46 gpm, 107 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 820-0011
- MPN: 820-0011
- UPC: 053514068974
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 13.7 A |
| Bearing Type | : | Ball |
| Connection Size | : | 1-1/4 in NPT Discharge |
| Cord Length | : | 20 ft |
| Dimension | : | 11-5/8 in W x 18-5/8 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 46 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Grinder Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 107 ft |
| Model | : | WD820 |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Series | : | Shark |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 230 VAC |
- Automatic model with integral control
- Durable, heavy-duty, finned cast iron construction
- Legs provided for free-standing installation
- Oil-filled and Hermetically sealed motor with class B insulation, automatic reset thermal overload protected
- Upper and lower ball bearing running in bath of oil
- Hardened stainless steel cutter and disc
- Cutters protected from abrasive solids
- Stainless steel lifting handle, screws and bolts
- Easily adapts to rail systems
- Mechanical shaft seal - carbon/ceramic
- Control panels not required
- Simplex grinder package systems (unassembled and job ready/assembled) available
- Corrosion-resistant, powder coated epoxy finish
- 1-1/4 in NPT vertical discharge
- Thermal overload protection
- Engineered plastic impeller
- Stainless steel cutter plate/cutter
- Stainless steel shaft
- Stainless steel hardware
- Class B insulation, capacitor start/capacitor run motor
- SOW or SOOW multi-wire neoprene cord
- Vortex impeller type
- Oil-filled cooling
- 1-year limited warranty
