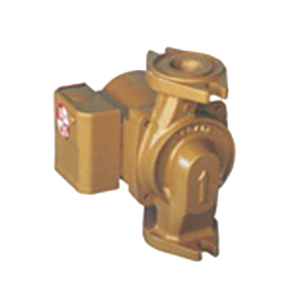

Bell & Gossett 103252LF

NBF-22 Bronze 3-Speed Wet Rotor Circulator Pump, 115 VAC, 1/25 hp, 2940 rpm, 22 gpm, 15 ft Head

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • PN: BG103252LF
  • MPN: 103252LF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.8 A
Connection Size      :      3/4, 1, 1-1/4, 1-1/2 in Flanged
Flow Rate      :      22 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/25 hp
Impeller Material      :      Noryl
Item Name      :      Wet Rotor Circulator Pump
Material      :      Bronze
Maximum Feet of Head      :      15 ft
Model      :      NBF-22
Phase      :      1 ph
Pressure Rating      :      150 psi
RPM      :      2940 rpm
Series      :      NBF
Temperature Rating      :      40 - 225 deg F
Type      :      3-Speed
Voltage Rating      :      115 VAC
Wattage      :      92 W

A series of in-line wet rotor circulation pumps designed specifically for quiet operation in open (potable) water systems. These pumps have lead-free bronze bodies. Flanged, union and sweat models are available.

  • Lead-free
  • Low-watt, energy conserving models
  • High starting torque provides dependable start-ups
  • Dura-Glide bearing system assures whisper-quiet, maintenance-free operation
  • Ceramic shaft
  • Double sintered carbon bearings
  • 3-years warranty

Standards/Certifications: CSA certified, cULus listed

Applications: For residential or light commercial potable or heating applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2270_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2271_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2271_Spec.pdf
