Bell & Gossett 112010

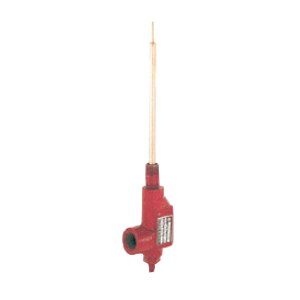

Airtrol ATF-12 Cast Iron Tank Fitting, 1/2 in, FNPT x FNPT

  • Manufacturers: Xylem
  • Brand Name: Bell & Gossett
  • PN: BG112010
  • MPN: 112010
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      FNPT
Item Name      :      Tank Fitting
Material      :      Cast Iron
Model      :      ATF-12
Pressure Rating      :      175 psig
Size      :      1/2 in
Sub Brand      :      Airtrol
Temperature Rating      :      250 deg F

Airtrol tank fittings help establish the proper initial liquid level in the compression tank when filling the hydronic system. They help maintain proper system pressurization by directing released air to the compression tank during system operation and permit cooler liquid flow to the boiler during the off cycle as system liquid cools. Airtrol tank fittings must be used with the appropriately sized in-line airtrol or rolairtrol air separator.

  • Copper and copper-plated tubes
  • Brass vent tube fittings

Applications: For 12, 13 and 14 in Dia compression tanks

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2626_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2626_Spec.pdf
