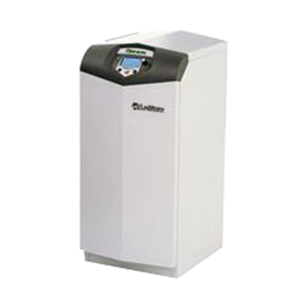

Lochinvar AWN286PM
Armor Commercial Condensing Natural Gas Water Heater, 285000 Btu/hr, 332 gph at 100 deg F Rise
- Manufacturers: A. O. Smith Corporation
- Brand Name: Lochinvar
- PN: AWN286PM
- MPN: AWN286PM
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| BTU Rating | : | 285000 Btu/hr |
| Connection Size | : | 2 in Water, 3/4 in Gas |
| Dimension | : | 42-1/2 in W x 33-1/4 in H x 19-3/4 in D |
| Efficiency | : | 96% |
| Flow Rate | : | 332 gph at 100 deg F Rise |
| Fuel Type | : | Natural Gas |
| Item Name | : | Gas Water Heater |
| Pressure Rating | : | 160 psi |
| Sub Brand | : | Armor |
| Type | : | Condensing, Commercial |
| Vent Size | : | 4 in |
- 96% thermal-efficiency (AHRI certified)
- Modulating burner with 5:1 turn-down - direct spark ignition, low NOx operation, sealed combustion, low gas pressure operation
- Vertical and horizontal direct vent - PVC, CPVC, polypropylene or SS up to 100 ft, PVC/CPVC sidewall vent termination
- Stainless steel heat exchanger - all welded construction, gasket-less design, 160 psi working pressure, ASME construction (AW 286-800)
- Natural to LP conversion kit
- Stainless steel circulating pump
- On/off Switch
- Flow switch
- ASME temperature and pressure relief valve (286-801)
- Down stream test valves (AW 501-801)
- Adjustable leveling legs
- Tank sensor
- Adjustable high limit with manual reset
- Automatic reset high limit
- Condensate trap
- Zero clearances to combustible materials
- Smart system digital operating control - multi-color graphic LCD display
- Built-in cascading sequencer for up to 8 water heaters
- Building management system integration
- Maintenance reminder
- High voltage terminal strip - 120 VAC/60 Hz/1 ph power supply
- Low voltage terminal strip - 24 VAC auxiliary device relay
- 4 in air inlet
- Pump mount
- 5-years limited warranty and 1-year parts warranty
Standards/Certifications: Energy Star, AHRI, CSA certified, ASME HLW stamped
