Apollo Valves 82-107-01
Send Print
  1. pin-int

Apollo Valves 82-107-01

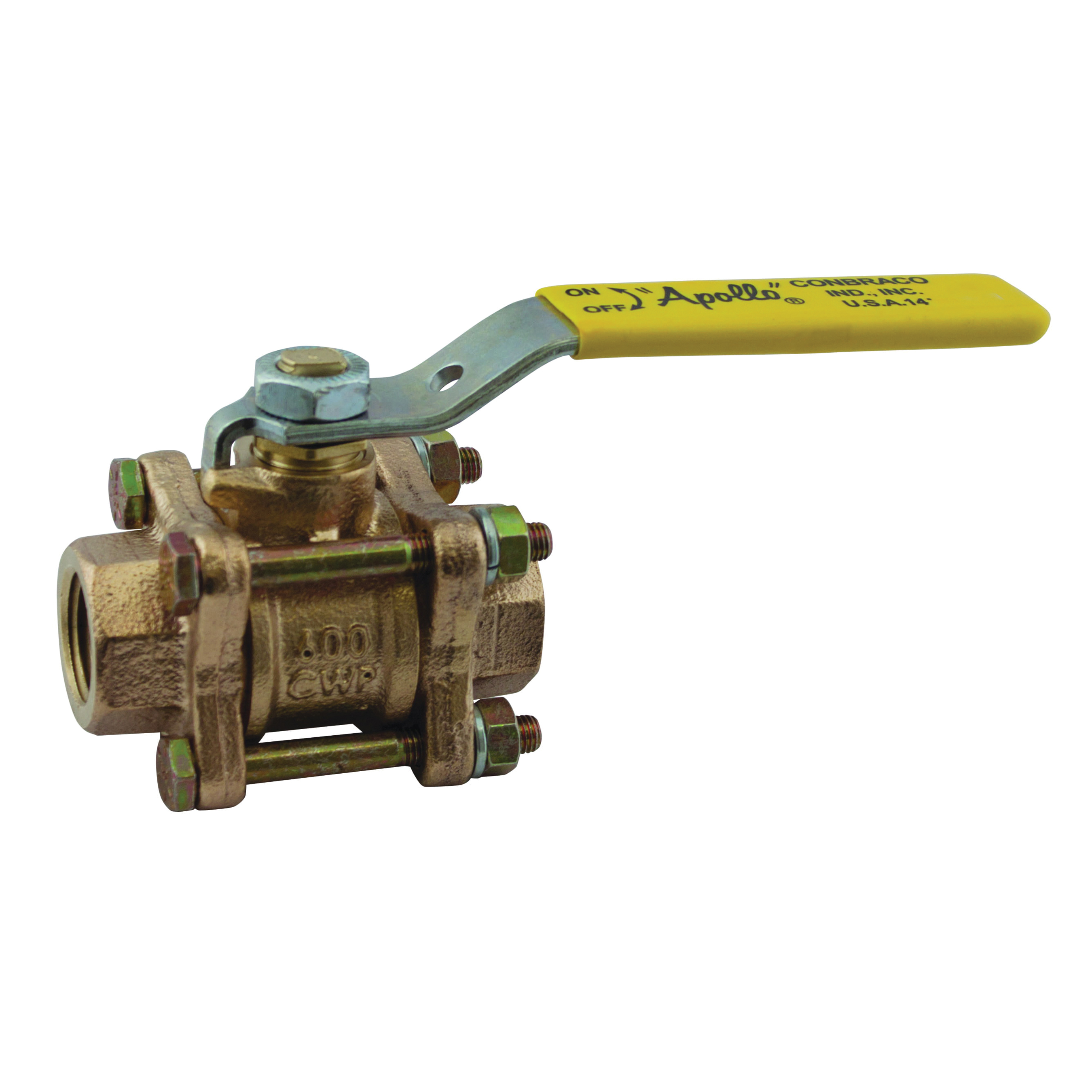

82-100 Bronze 3-Piece Full-Port Ball Valve, 1-1/2 in, NPT

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 82-107-01
  • MPN: 82-107-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      NPT
Dimension      :      5-1/4 in L x 3.03 in W
Flow Co-Efficient      :      170 Cv
Item Name      :      Ball Valve
Material Specifications      :      ASTM B16, ASTM B283, ASTM B584, C84400
Material      :      Bronze
Model      :      82-100
Operator Type      :      Zinc-Plated Steel with Vinyl Grip Lever Handle
Pressure Rating      :      600 psi CWP, 150 psi WSP
Seal Material      :      RPTFE
Seat Material      :      RPTFE
Series      :      82
Stem Material      :      Chrome-Plated Brass
Temperature Rating      :      500 deg F
Type      :      3-Piece, Full-Port

The Apollo 82-100 series is designed as an in-line serviceable full port bronze ball valve. SAE grade body bolts and RPTFE seals are standard.

  • Dezincification-resistant bronze body
  • Adjustable packing gland
  • Blowout-proof stem design
  • Premium RPTFE seats and seals
  • Full port ball configuration in all sizes
  • 100% factory tested
  • RPTFE stem bearing, brass (2) end cap, gland nut, zinc-plated steel lever nut, body bolt and hex nut
  • Vacuum service to 29 in Hg
  • Made in USA
  • 5-years warranty

Standards/Certifications: MSS SP-110, CSA B51, CRN OC10908.5C certified

Applications: For commercial applications

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8808_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10429_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10429_Spec.pdf
