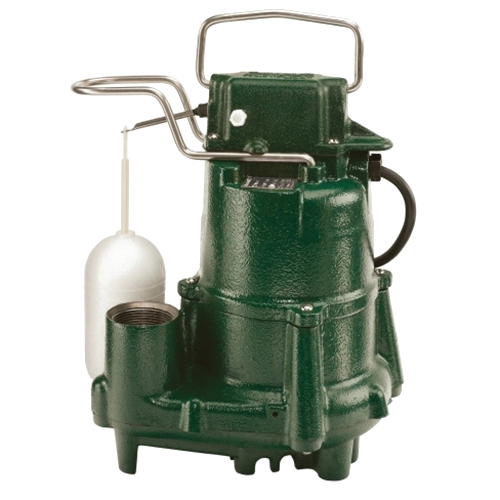

Zoeller Pumps 98-0001
M98 Powder Coated Epoxy Cast Iron 1-Seal Automatic Submersible Effluent/Dewatering Pump, 115 VAC, 1/2 hp, 1725 rpm, 72 gpm, 23 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 98-0001
- MPN: 98-0001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 9.4 A |
| Connection Size | : | 1-1/2 in NPT Discharge |
| Cord Length | : | 15 ft |
| Dimension | : | 10-1/8 in W x 12-1/16 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 72 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Submersible Effluent/Dewatering Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 23 ft |
| Model | : | M98 |
| Phase | : | 1 ph |
| RPM | : | 1725 rpm |
| Series | : | Flow-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 VAC |
- Effluent or dewatering submersible pumps for septic tank, low pressure pipe and enhanced flow step systems
- Corrosion-resistant, powder coated epoxy finish
- Durable, cast iron construction
- Cast iron switch case, motor, pump housing and base
- No sheet metal parts to rust or corrode
- All castings are cast iron class 25-30 25000 lb tensile strength
- Stainless steel screws, guard, handle, arm and seal assembly
- Float-operated, 2-pole mechanical switch
- Permanent split capacitor motor, oil-filled and hermetically sealed, automatic reset thermal overload protection
- Upper and lower oil-fed cast iron bearings
- Carbon and ceramic shaft seal
- Entire unit pressure tested after assembly
- Water-tight, neoprene square ring between motor and pump housing
- Passes 1/2 in (13 mm) spherical solids
- No screens to clog
- 1-1/2 in NPT discharge
- Class B insulation, permanent split capacitor motor
- Oil-filled cooling
- 3-years limited warranty
Standards/Certifications: cCSAus, SSPMA certified, UL 778 listed
