AGF AGF3011A.1

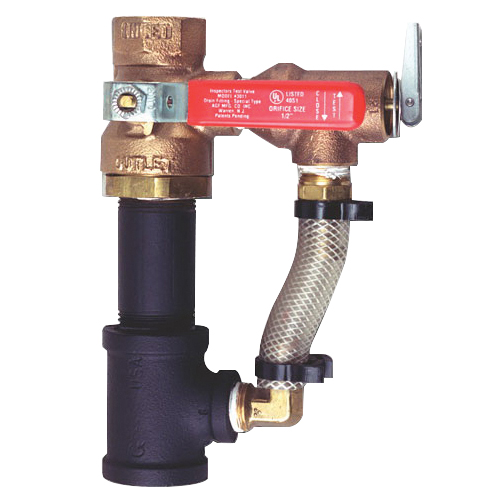

Inspector's Test M3011A Bronze Ball Valve with Pressure Relief Valve, 1 in, NPT
- Manufacturers: AGF Manufacturing
- Brand Name: AGF
- PN: AGF3011A.1
- MPN: AGF3011A.1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Ball Material | : | Chrome-Plated Brass |
| Connection Size | : | 1 in |
| Connection Type | : | NPT |
| Dimension | : | 7-7/8 in L x 4-11/16 in W |
| Item Name | : | Ball Valve with Pressure Relief Valve |
| Material | : | Bronze |
| Model | : | M3011A |
| Operator Type | : | Steel Handle |
| Pressure Rating | : | 300 psi |
| Seat Material | : | Teflon |
| Stem Material | : | Brass Rod |
| Sub Brand | : | Inspector's Test |
The Inspector's Test model 3011A is a 300 psi rated ball valve designed to perform the remote inspector's test function on single story and other applications with the benefit of locating the orifice indoors. The Inspector's Test model 3011A includes a model 7000 pressure relief valve and drainage piping and complies with the requirements of NFPA 13 for the installation of a pressure relief valve on all gridded systems and downstream of all pressure reducing valves.
- Compact, 1-handle ball valve
- Tamper-resistant test orifice
- Tamper-resistant sight glass
- 175 psi rated pressure relief valve
- Bronze relief valve, brass bypass fittings, nylobraid bypass tubing, bronze and glass sight glass
Standards/Certifications: UL and ULC EX4019(N) and EX4533(N) listed, FM NYC-BSA Number 720-87-SM and NFPA 13 approved
Applications: For single story and other applications including systems requiring pressure relief valve
