Zoeller Pumps 57-0001

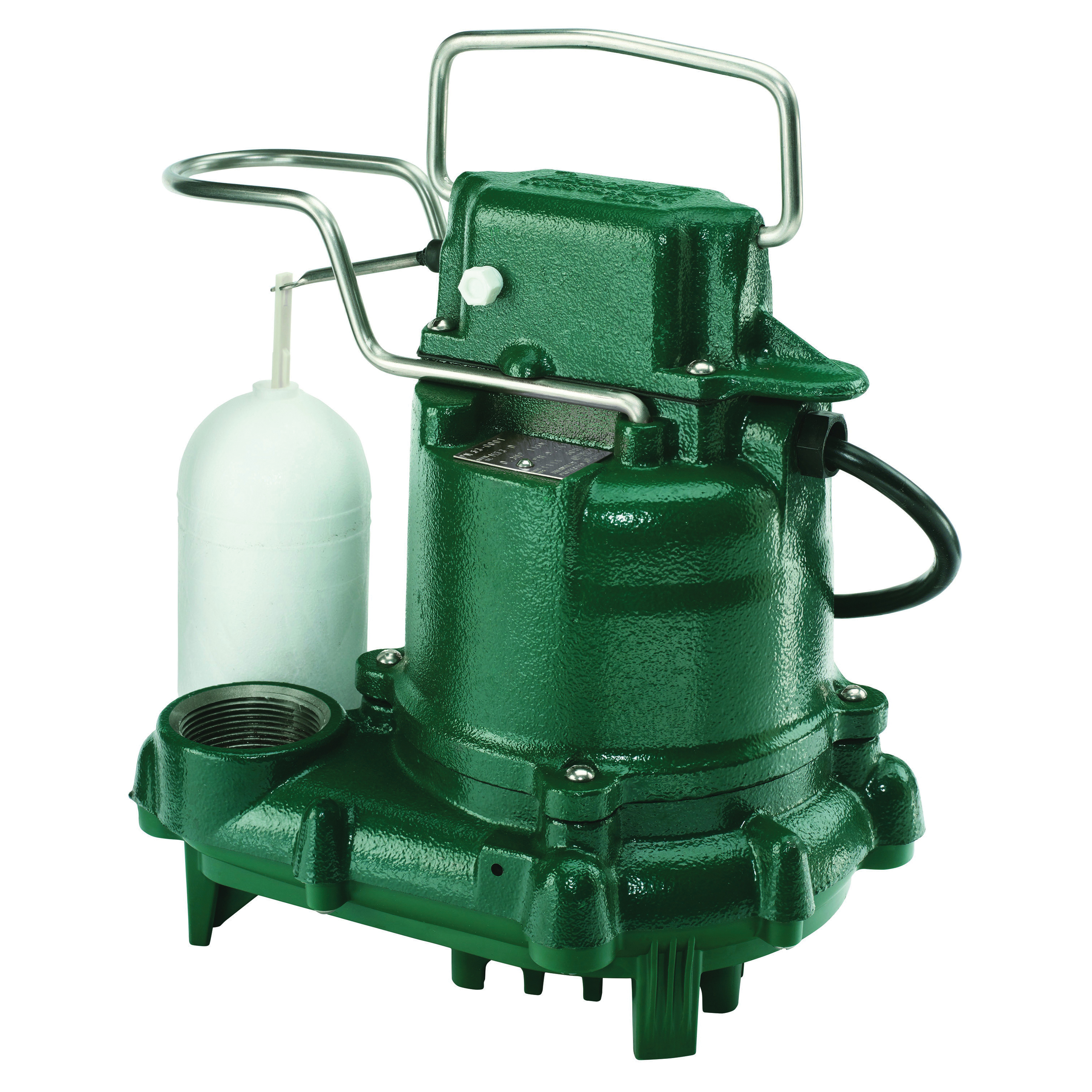

M57 Powder Coated Epoxy Cast Iron 1-Seal Automatic Submersible Effluent/Dewatering Pump, 115 VAC, 3/10 hp, 1550 rpm, 43 gpm, 19.25 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 57-0001
- MPN: 57-0001
- UPC: 053514024055
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 9.7 A |
| Bearing Type | : | Sleeve |
| Connection Size | : | 1-1/2 in NPT Discharge |
| Cord Length | : | 9 ft |
| Dimension | : | 10-1/16 in W x 7-7/8 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 43 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/10 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Submersible Effluent/Dewatering Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 19.25 ft |
| Model | : | M57 |
| Phase | : | 1 ph |
| RPM | : | 1550 rpm |
| Series | : | Mighty-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 VAC |
- Professional-grade, 3/10 hp submersible pump for residential dewatering (sump) or effluent (septic tank systems) use
- Corrosion-resistant, powder coated epoxy finish
- Float-operated, submersible, 2-pole mechanical switch and variable level, long cycle systems available
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog
- Water-tight, neoprene square ring between motor and pump housing
- Solid, buoyant, polypropylene float
- Oil-filled and hermetically sealed, automatic reset thermal overload protection motor
- Upper and lower sleeve bearings running in bath of oil
- Entire unit pressure tested after assembly
- Carbon and ceramic shaft seal
- Passes 1/2 in spherical solids
- Cast iron switch case, motor and pump housing
- Engineered thermoplastic base
- Engineered, glass-filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Cast iron sleeve bearings
- Class B insulation, shaded pole motor
- 3-wire, grounded plug cord
- Oil-filled cooling
- 3-years limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL 778 listed
