Armstrong 174033MF-043

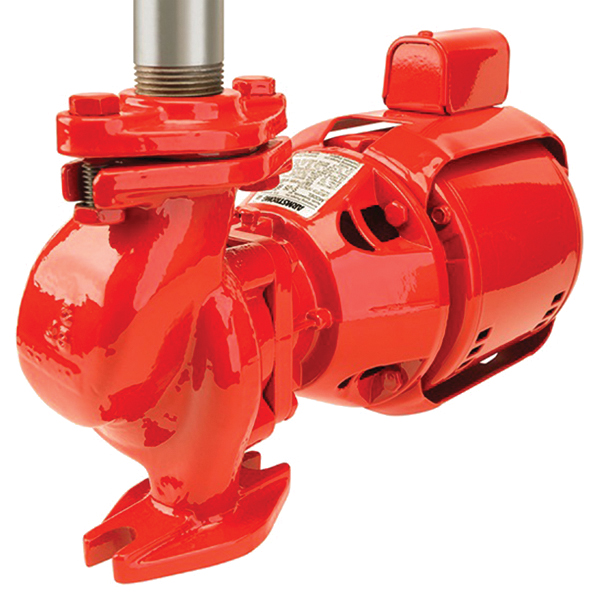

S-35 Bronze In-line Circulator Pump, 115 VAC, 1/6 hp, 1800 rpm, 75 gpm, 11 ft Head
- Manufacturers: Armstrong Pumps
- Brand Name: Armstrong
- PN: 174033MF-043
- MPN: 174033MF-043
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 2 in NPT |
| Dimension | : | 15 in W x 13.38 in H |
| Flow Rate | : | 75 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Item Name | : | Circulator Pump |
| Material | : | Bronze |
| Maximum Feet of Head | : | 11 ft |
| Model | : | S-35 |
| Mounting | : | Resilient |
| Phase | : | 1 ph |
| Pressure Rating | : | 125 psig |
| RPM | : | 1800 rpm |
| Series | : | S |
| Temperature Rating | : | 225 deg F |
| Type | : | In-Line |
| Voltage Rating | : | 115 VAC |
Armstrong 3-piece circulators use a proven design that continues to evolve. The expanded temperature range makes them suitable for more applications and the industry accepted flange configuration makes S&H circulators a perfect solution when you need to change out pumps quickly without the need for pipe modifications.
- Lead-free
- Proven seal design made from strong and long-lasting materials for extended operating life
- Durable and trusted design
- 3-piece modular construction using a universal replacement shaft and bearing module for efficient parts inventory
- Durable and fully serviceable design for repeat pump overhauls and repairs
- 3-piece modular construction and back pull-out design for easy replacement of wear components
- Mechanical seal
- Sintered silicon carbide seal face
- Resilient mounted motor
- Companion flanges included
- Non-ferrous impeller
- 4-spring flexible coupler
- Permanently lubricated bearings
- Stainless steel shaft
- Maintenance-free design
Standards/Certifications: NSF 372 certified
Applications: For hydronic heating and cooling, domestic water systems
