Apollo Valves 70-603-01

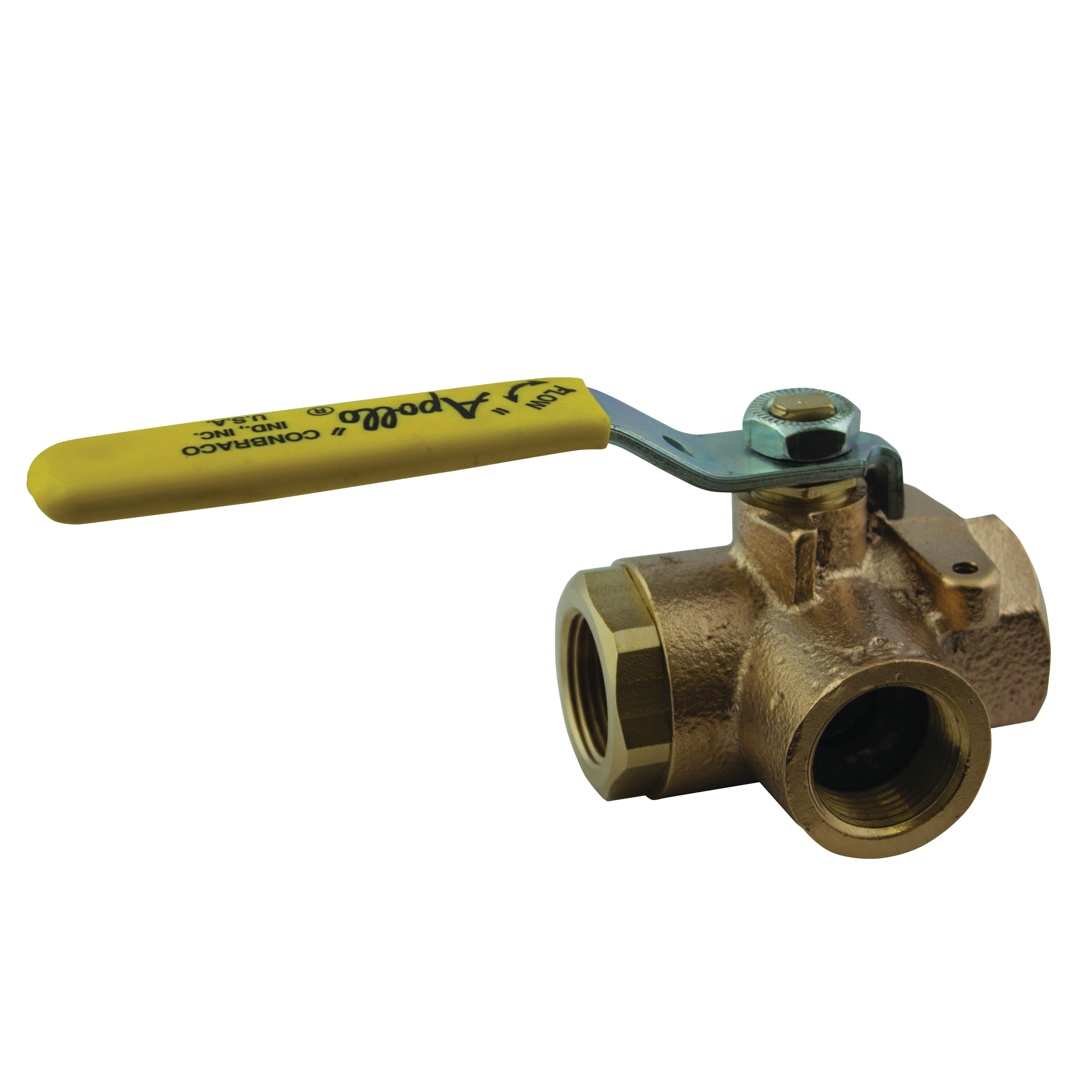

70-600 Bronze 3-Way 2-Piece Standard Port Diversion Ball Valve, 1/2 in, FNPT

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 70-603-01
  • MPN: 70-603-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2-3/4 in L
Flow Co-Efficient      :      5.4 Cv
Item Name      :      Diversion Ball Valve
Material Specifications      :      ASTM B16, ASTM B283, C37700, ASTM B584, C84400
Material      :      Bronze
Model      :      70-600
Operator Type      :      Zinc-Plated Steel with Vinyl Grip Lever Handle
Pressure Rating      :      400 psi CWP
Seat Material      :      RPTFE
Series      :      70
Stem Material      :      Brass
Temperature Rating      :      500 deg F
Type      :      3-Way, 2-Piece, Standard Port

The Apollo 70-600 series standard port 3-way diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM materials in the US.

  • Adjustable packing gland
  • Blowout-proof stem design
  • RPTFE seats and stuffing box ring
  • Drilled and tapped mounting pad
  • RPTFE steam bearing, brass retainer and gland nut, zinc-plated steel lever nut

Standards/Certifications: MSS SP-110, federal specifications WW-V-35C, CRN OC10908.5C, ISO 9001:2008 standard

Applications: For industrial and commercial
