Mill-Rose 70820

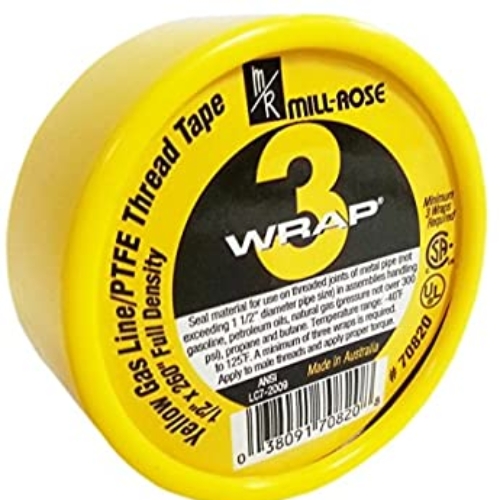

Yellow PTFE 3-Wrap, Gas Thread Sealant Tape, 1/2 x 260 in

  • Manufacturers: Mill-Rose
  • Brand Name: Mill-Rose
  • PN: 70820
  • MPN: 70820
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Yellow
Density      :      1.5 g/cc Plus/Minus 10%
Elongation      :      More than 100%
Item Name      :      Thread Sealant Tape
Length      :      260 in
Material      :      PTFE
Pressure Rating      :      4347 psi
Temperature Rating      :      -400 to 500 deg F
Tensile Strength      :      10 - 17 N/sq-m
Thickness      :      0.004 in Plus/Minus 10%
Type      :      3-Wrap, Gas
Width      :      1/2 in

Mill-Rose 3-wrap yellow gas seal tape 70840 1 x 260 in rolls 6.3 lb is a PTFE thread sealing tape designed specifically for gas lines. This is a full or maximum density thread sealing tape. Mill-Rose 3-wrap yellow gas seal tape is approved by relevant authorities and used by the gas industry world-wide. It's color-coded yellow so fitters and inspectors can easily recognize it as an approved tape.

  • 99.6% PTFE less than 1% pigment
  • In tests conducted by an independent laboratory Mill-Rose 3-wrap yellow gas seal tape was found to seal fittings carrying natural gas at pressures up to 4347 psi
  • -400 to 500 deg F PTFE is completely stable up to 500 deg F, decomposition is slow up to 750 deg F, although decomposition will occur on contact with naked flames

Standards/Certifications: UL 31RO listed, comply A-A58092, AGA 3226 certified

Applications: For natural gas, propane and butane lines
