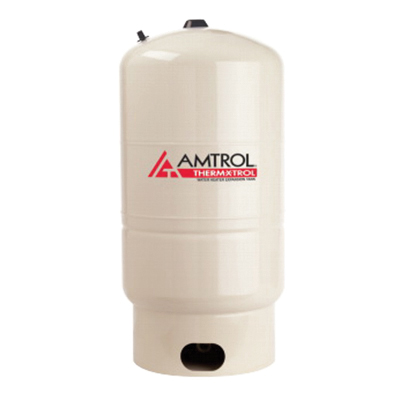

Amtrol 143N273
Therm-X-Trol ST-30V Urethane Topcoat Steel Vertical Thermal Expansion Tank with Stand, 14 gal, 150 psig, 3/4 in FNPT, 24 in H x 15 in Dia
- Manufacturers: Amtrol
- Brand Name: Amtrol
- PN: AMST30V
- MPN: 143N273
- UPC: 642031395696
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Capacity | : | 14 gal |
| Connection Size | : | 3/4 in FNPT |
| Diameter | : | 15 in |
| Finish | : | Urethane Topcoat |
| Height | : | 24 in |
| Item Name | : | Thermal Expansion Tank with Stand |
| Material | : | Steel |
| Model | : | ST-30V |
| Pressure Rating | : | 150 psig |
| Series | : | ST |
| Sub Brand | : | Therm-X-Trol |
| Temperature Rating | : | 200 deg F |
| Type | : | Vertical |
Amtrol invented the thermal expansion tank to absorb expanded water in closed, hot water systems and protect the water heater. Since the beginning, we've kept the pressure on our competitors with features they just can't match, like our patented turbulator, anti-microbial liner, patent pending InSight service indicator cap and 50 psig pre-charge. When your water heater is on the line, we deliver.
- Anti-microbial liner neutralizes bacteria on contact
- Patented turbulator water circulation device
- Projection welded air stem to help eliminate leaks
- Strongest tank design featuring deep drawn steel and multi-dome construction
- Thickest diaphragm - heavy-duty butyl
- Stainless steel system connection
- Factory pre-charge 40 psig
- High strength steel shell
- Accepts expanded water as system temperature rises and returns hot water to system when demand occurs
- Urethane top coat finish
- 0.81 maximum acceptance factor
- Made in USA
- 1-year limited warranty
Standards/Certifications: ISO 9001:2008 standard, IAMPO R&T listed, PHCC, ANSI/NSF 61 certified
Applications: For large residential and light commercial (non-ASME) applications
