Zoeller Pumps 267-0001

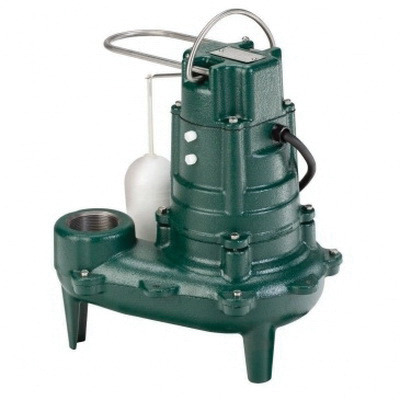

M267 Powder Coated Epoxy Cast Iron 1-Seal Automatic Sewage Pump, 115 VAC, 1/2 hp, 1725 rpm, 115 gpm, 20.5 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 267-0001
- MPN: 267-0001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 10.4 A |
| Bearing Type | : | Sleeve |
| Connection Size | : | 2 in FPT Discharge |
| Cord Length | : | 10 ft |
| Dimension | : | 13-1/16 in W x 14-5/16 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 115 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Plastic |
| Item Name | : | Sewage Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 20.5 ft |
| Model | : | M267 |
| Phase | : | 1 ph |
| RPM | : | 1725 rpm |
| Series | : | Waste-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 VAC |
- Float-operated, 2-pole mechanical switch
- Durable cast construction, ASTM class 25 cast iron, switch case and pump housing
- Cast iron base
- Non-clogging vortex impeller design engineered plastic impeller with metal inserts
- Not affected by materials normally found in drainage and sewage sumps
- Stainless steel screws, bolts, handle, guard and arm and seal assembly
- Neoprene square ring and gasket
- Oil-filled and hermetically sealed motor
- Oil-lubricated bearings
- Carbon and ceramic shaft seal
- Passes 2 in spherical solids
- 2 in FPT discharge
- 12 in ON point, 4 in OFF point automatic units
- Corrosion-resistant, powder coated epoxy finish
- Completely submersible
- Water-tight and dust-tight
- Automatic reset thermal overload protection
- Class B insulation, split-phase motor
- Oil-filled cooling
- UL listed 3-wire neoprene cord and plug
- Upper and lower sleeve bearing
- AISI 1215 cold-rolled steel motor shaft
- 3-years limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL listed
