Zoeller Pumps 292-0001

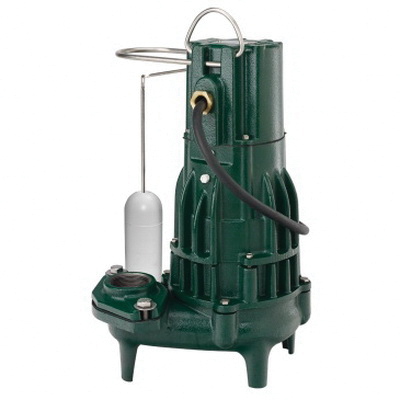

M292 Powder Coated Epoxy Cast Iron 1-Seal Automatic Submersible Sewage Pump, 115 VAC, 1/2 hp, 3450 rpm, 135 gpm, 42 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 292-0001
- MPN: 292-0001
- UPC: 053514019044
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 15 A |
| Bearing Type | : | Ball |
| Connection Size | : | 2 in NPT Discharge |
| Cord Length | : | 20 ft |
| Dimension | : | 12-7/8 in W x 19-5/16 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 135 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Item Name | : | Submersible Sewage Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 42 ft |
| Model | : | M292 |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Series | : | Waste-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 VAC |
- Durable, cast iron constructed switch case, base, motor and pump housing
- No sheet metal parts to rust or corrode
- All cast iron class 30 30000 lb tensile strength
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil-filled and hermetically sealed, automatic reset thermal overload protection motor
- Shaft seal - stainless steel carbon and ceramic rotary
- 1117 carbon steel motor shaft
- Corrosion-resistant, powder coated epoxy finish
- Upper and lower ball bearing running in bath of oil
- Neoprene square ring and gasket
- 2 in spherical solids
- 15-3/4 in ON point, 5-1/4 in OFF point automatic units
- 100% computerized tested
- Oil-filled cooling
- Non-clogging vortex impeller type
- Class B insulation, permanent split capacitor motor
- UL listed 3-wire neoprene cord and plug
- 1-year limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL listed
