Legend Valve 101-541

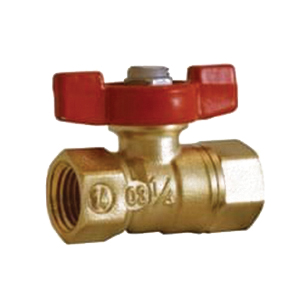

Micro Ball T-800-T Brass Mini-Ball Valve, 1/4 in, FNPT

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 101-541
  • MPN: 101-541
  • UPC: 662545005485
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Brass
Connection Size      :      1/4 in
Connection Type      :      FNPT
Dimension      :      1.61 in L
Item Name      :      Mini-Ball Valve
Material Specifications      :      ASTM B124, C37700, ASTM B16, C36000
Material      :      Brass
Model      :      T-800-T
Operator Type      :      Aluminum T-Handle
Pressure Rating      :      400 psi CWP Non-Shock, 125 psi WSP
Seat Material      :      PTFE
Stem Material      :      Brass
Sub Brand      :      Micro Ball
  • Brass end adapter, PTFE thrust washer and anti-friction washer, viton FPM O-ring, anti-vibration handle nut

Standards/Certifications: ISO 9002 standard
