Legend Valve 105-425NL

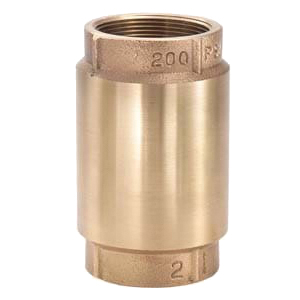

T-450NL Bronze In-Line Check Valve, 1 in, FNPT, Lead-Free

  • Manufacturers: Legend Valve
  • Brand Name: Legend Valve
  • PN: 105-425NL
  • MPN: 105-425NL
  • UPC: 662545086361
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1 in
Connection Type      :      FNPT
Dimension      :      3.23 in L x 1.77 in W
Disc Material      :      Cast Bronze
Item Name      :      In-Line Check Valve
Material Specifications      :      UNS C87850
Material      :      Bronze
Model      :      T-450NL
Pressure Rating      :      200 psi CWP Non-Shock
Temperature Rating      :      200 deg F Service
  • Lead-free design is suitable for all no-lead potable water installations in full compliance of all lead-free plumbing laws
  • Durable, heavy-wall cast bronze design is ideal for water well applications
  • Spring-loaded stem-disc and elastomer O-ring seal are a silent closure design
  • 1/2 lb cracking pressure is ideal for all types of well pumps
  • Fully guided stem minimizes over travel, reducing the chance of piston failure
  • Can be installed in the vertical or horizontal positions
  • AISI 304 stainless steel stem nut, spring cup and spring, celcon M90 polyacetal resin stem guide, SAE number 1052 Buna-N (NBR) rubber O-ring, UNS alloy C87850 lead-free cast bronze stem disc

Standards/Certifications: ANSI/ASME B1.20.1, NSF 372, US federal public law 111-380, ISO 9002 standard, WQA tested and certified
