Zurn 112-850XL

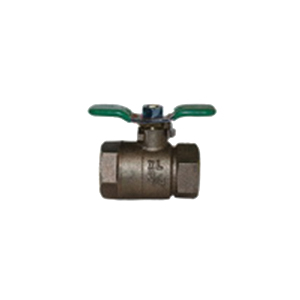

850XL Bronze Full-Port Ball Valve, 1-1/2 in, FNPT, Lead-Free

  • Manufacturers: Zurn Industries
  • Brand Name: Zurn
  • PN: 112-850XL
  • MPN: 112-850XL
  • UPC: 612052015606
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Hard Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      FNPT
Dimension      :      3-3/4 in L
Item Name      :      Ball Valve
Material Specifications      :      ASTM B584
Material      :      Bronze
Model      :      850XL
Operator Type      :      Stainless Steel Handle
Pressure Rating      :      400 psi WOG
Seat Material      :      TFE
Stem Material      :      Brass
Temperature Rating      :      33 - 350 deg F at 50 psi
Type      :      Full-Port
  • Lead-free
  • 1/4-turn, full port ball valves
  • Used on Wilkins small diameter backflow assemblies
  • Ideal for throttling and balancing installations of low pressure steam, air, water and non-corrosive gas or oil
  • TFE virgin teflon thrust washer, stainless steel handle nut

Standards/Certifications: ANSI B1.20.1, ANSI/NSF 372 certified, IAPMO R&T listed

Applications: For residential, commercial and industrial applications
