Zoeller Pumps 137-0001

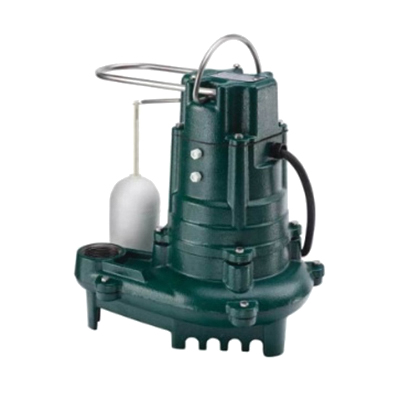

M137 Cast Iron 1-Seal Automatic Effluent/Dewatering Pump, 115 VAC, 1/2 hp, 1750 rpm, 90 gpm, 26 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 137-0001
- MPN: 137-0001
- UPC: 053514013943
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 10.7 A |
| Bearing Type | : | Sleeve |
| Connection Size | : | 1-1/2 in NPT Discharge |
| Cord Length | : | 10 ft |
| Dimension | : | 12-1/4 in W x 12-3/4 in H |
| Finish | : | Powder Coated Epoxy |
| Flow Rate | : | 90 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Cast Iron |
| Item Name | : | Effluent/Dewatering Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 26 ft |
| Model | : | M137 |
| Phase | : | 1 ph |
| RPM | : | 1750 rpm |
| Series | : | Flow-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Automatic |
| Voltage Rating | : | 115 VAC |
- Effluent or dewatering submersible pumps for septic tank, low pressure pipe and enhanced flow step systems
- Castings model 137, all cast iron ASTM class 25, 2500 lb tensile strength
- Corrosion-resistant, powder coated epoxy finish
- Durable, cast iron construction switch case motor and pump housing, base and impeller
- Float-operated, 2-pole mechanical switch
- Oil-filled and hermetically sealed, automatic reset thermal overload protection motor
- Upper and lower sleeve bearings running in bath of oil
- Carbon and ceramic shaft seal
- Stainless steel screws, bolts, guard, handle, arm and seal assembly
- Passes 5/8 in spherical solids
- No screens to clog
- 1-1/2 in NPT discharge
- 10 in On point, 2-3/4 in Off point
- Variable level control systems available, designed for heavy-duty effluent applications
- Class B insulation, split-phase motor
- UL listed neoprene cord
- Oil-filled cooling
- Non-clogging vortex impeller type
- 3-years limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL 778 listed
