Zoeller Pumps 140-0002

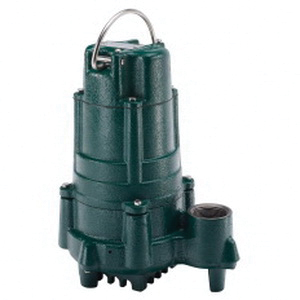

N140 Powder Coated Epoxy Cast Iron 1-Seal Manual Submersible Effluent/Dewatering Pump, 115 VAC, 1 hp, 3450 rpm, 86 gpm, 50 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 140-0002
- MPN: 140-0002
- UPC: 053514057800
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 12 A |
| Connection Size | : | 1-1/2 in NPT Discharge |
| Cord Length | : | 20 ft |
| Dimension | : | 10-3/16 in W x 12-13/32 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 86 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Impeller Material | : | Thermoplastic |
| Item Name | : | Submersible Effluent/Dewatering Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 50 ft |
| Model | : | N140 |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Series | : | Flow-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Manual |
| Voltage Rating | : | 115 VAC |
- Effluent or dewatering submersible pumps for septic tank, low pressure pipe and enhanced flow step systems
- Durable cast iron construction
- Corrosion-resistant, powder coated epoxy finish
- Stainless steel bolts and lifting handle
- Carbon/ceramic mechanical shaft seals
- Oil-filled and hermetically sealed, automatic reset thermal overload protection motor
- Upper sleeve and lower ball bearing running in bath of oil
- 1-1/2 in NPT vertical discharge
- Non-clogging, engineered thermoplastic, vortex impeller design and passes 1/2 in spherical solids
- Class B insulation, permanent split capacitor motor
- UL listed neoprene cord
- Oil-filled cooling
- Auto reset thermal overload motor protection
- Cast iron base, cap
- 1-year limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL 778 listed
