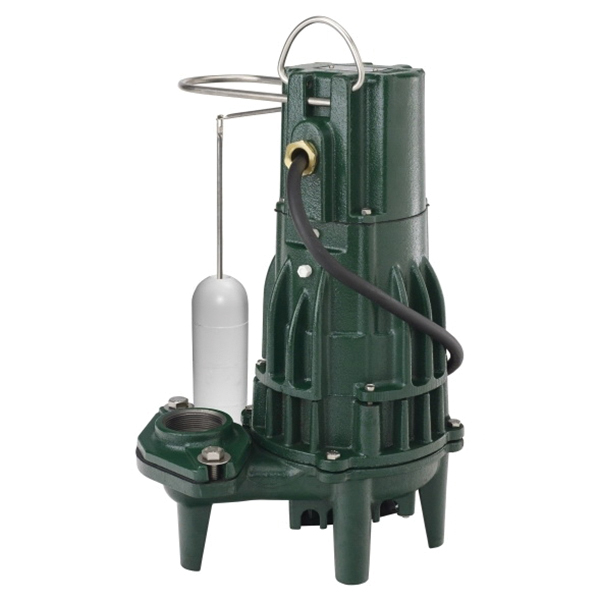

Zoeller Pumps 161-0002
N161 Powder Coated Epoxy Cast Iron 1-Seal Manual Submersible Effluent Pump, 115 VAC, 1/2 hp, 3450 rpm, 100 gpm, 56 ft Head
- Manufacturers: Zoeller Pump Company
- Brand Name: Zoeller Pumps
- PN: 161-0002
- MPN: 161-0002
- UPC: 053514014940
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Amperage Rating | : | 15 A |
| Bearing Type | : | Ball |
| Connection Size | : | 1-1/2 in NPT Discharge |
| Cord Length | : | 20 ft |
| Dimension | : | 12-3/4 in W x 19-5/16 in H |
| Finish | : | Epoxy Powder Coated |
| Flow Rate | : | 100 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Impeller Material | : | Bronze |
| Item Name | : | Submersible Effluent Pump |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 56 ft |
| Model | : | N161 |
| Phase | : | 1 ph |
| RPM | : | 3450 rpm |
| Series | : | High Head Flow-Mate |
| Temperature Rating | : | 130 deg F |
| Type | : | 1-Seal, Manual |
| Voltage Rating | : | 115 VAC |
- Effluent or dewatering submersible pumps for septic tank, low pressure pipe and enhanced flow step systems
- Durable, cast iron constructed switch case, base, motor and pump housing
- Cast iron class 25-30
- Bronze class 85-5-5-5 impeller
- Corrosion-resistant, powder coated epoxy finish
- Oil-filled and hermetically sealed, automatic reset thermal overload protected (1-ph only) motor
- Upper and lower ball bearing running in bath of oil
- Carbon and ceramic shaft seal
- SAE 1117 carbon steel motor shaft
- Maximum temperature for effluent or dewatering 130 deg F
- No screens to clog
- Neoprene square ring and gasket
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Passes 3/4 in spherical solids
- 1-1/2 in NPT discharge
- 14-3/4 in On point, 5 in Off point
- 100% of units are computerized tested
- Class B insulation, permanent split capacitor motor
- UL listed 3-wire neoprene cord and plug
- Oil-filled cooling
- Auto reset thermal overload motor protection
- Non-clogging vortex impeller type
- 1-year limited warranty
Standards/Certifications: cCSAus C22.2 108, SSPMA certified, UL 778 listed
