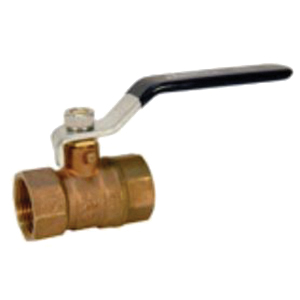

Nibco NL9600C

T-580-A Brass 2-Piece Standard Port Ball Valve, 1-1/2 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: T580.112
  • MPN: NL9600C
  • UPC: 039923295750
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      FNPT
Dimension      :      3.4 in L
Item Name      :      Ball Valve
Material      :      Brass
Model      :      T-580-A
Operator Type      :      Plated Steel Lever Handle
Pressure Rating      :      400 psi CWP Non-Shock
Seat Material      :      PTFE
Stem Material      :      Brass
Type      :      2-Piece, Standard Port

The Nibco brass ball valve with threaded end connections provides bubble-tight shutoff at 400 psi. The valve's PTFE seat ring and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. The Nibco bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-piece valve features threaded end connections for easy installation. Nibco specialty valves are backed by a Nibco Inc. 2-years limited warranty.

  • Blowout-proof stem design
  • Forged brass end cap, PTFE ball seat, fluorocarbon O-ring, brass packing nut, stainless steel lock washer and stem nut

Applications: For hot/cold water and gas applications
