Nibco NL95046
Send Print
  1. pin-int

Nibco NL95046

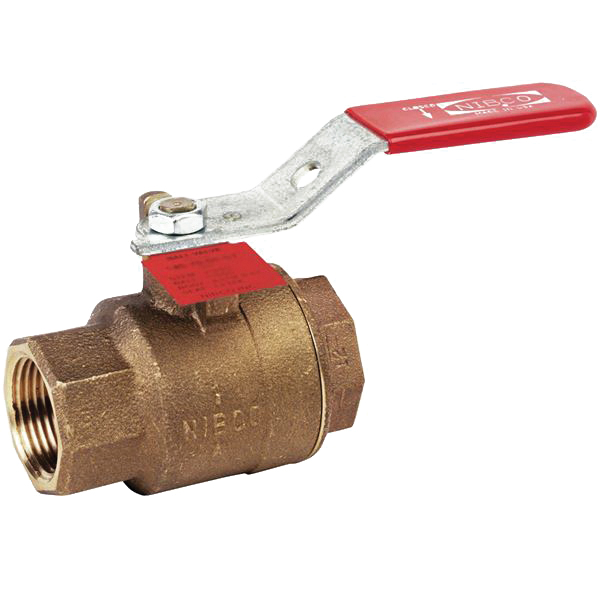

KT-585-70-UL Bronze 2-Piece Full-Port Ball Valve, 1/2 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: T585-70-UL.12
  • MPN: NL95046
  • UPC: 039923677792
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Hard Chrome-Plated Brass
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      5.19 in L
Item Name      :      Ball Valve
Material Specifications      :      ASTM B16, C36000, ASTM B371, C69430, ASTM B99, C65100, ASTM B124, C37700, ASTM B584, C84400
Material      :      Bronze
Model      :      KT-585-70-UL
Operator Type      :      Plastisol Coated Clear Chromate Zinc-Plated Steel Lever Handle
Packaging Material      :      PTFE
Pressure Rating      :      300 psi WWP Non-Shock
Seat Material      :      RPTFE
Stem Material      :      Silicon Bronze
Type      :      2-Piece, Full-Port

The Nibco full port bronze ball valve provides bubble-tight shutoff at 300 psi non-shock water working pressure (WWP). The 2-piece valve is ideal for automatic fire sprinkler trim application. The Nibco full port bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-piece valve features threaded end connections for easy installation. The valve is FM approved and Underwriters listed for automatic fire sprinkler trim application (UL258). Nibco ball valves are backed by the Nibco Inc. 5-years 125% limited warranty.

  • Blowout-proof stem design
  • Dezincification-resistant
  • Zinc-plated steel handle nut, brass threaded pack gland, reinforced PTFE thrust washer and (2) seat ring, bronze body end-piece

Standards/Certifications: MSS SP-110 certified, UL258 listed, FM approved

Applications: For automatic fire sprinkler trim application
