Nibco NL951K6

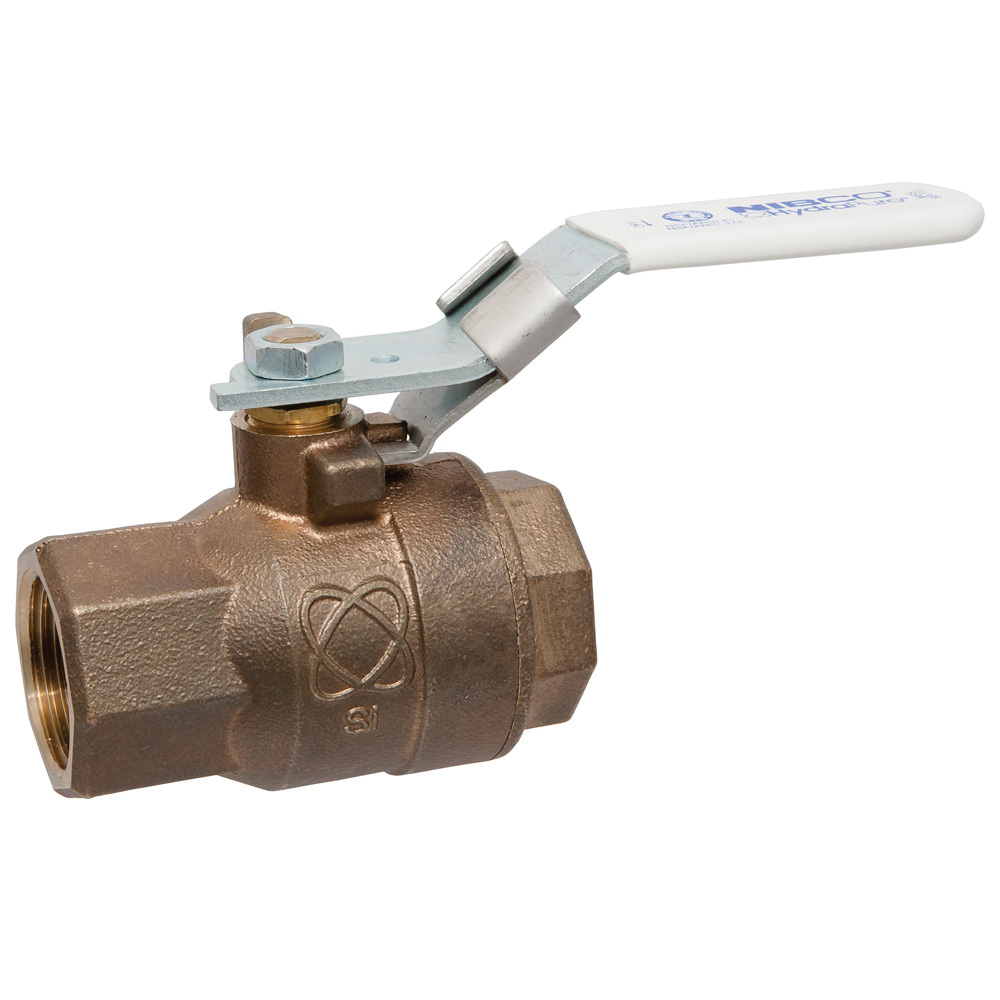

T-585-80-LF-LL Bronze 2-Piece Full-Port Ball Valve with Locking Lever Handle, 1/2 in, FNPT, Lead-Free

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: T585-80LFLL.12
  • MPN: NL951K6
  • UPC: 039923349064
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      DZR Brass
Connection Size      :      1/2 in
Connection Type      :      FNPT
Dimension      :      2.23 in L
Item Name      :      Ball Valve with Locking Lever Handle
Material Specifications      :      ASTM B371, C69300, ASTM B16, C36000, ASTM B584, C87600, ASTM A276 S31600 ASTM J461, C46500, ASTM A351 CF8M
Material      :      Bronze
Model      :      T-585-80-LF-LL
Operator Type      :      Plastisol Coated Clear Chromate Zinc-Plated Steel Lever Handle
Pressure Rating      :      600 psi CWP Non-Shock
Stem Material      :      Silicon Bronze
Temperature Rating      :      300 deg F
Type      :      2-Piece, Full-Port

The Nibco ball valve is made of lead-free silicon performance Bronze alloy and has achieved the stringent ANSI/NSF 61 section 8 (commercial hot) and ANSI/NSF 372 listings. The 2-piece valve provides bubble-tight shutoff at 600 psi and is dezincification resistant. The ball valve includes reinforced PTFE seat rings with silicon bronze stem and ball and is ideal for use in applications that deliver water for human consumption including residential and commercial construction. The Nibco bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-piece valve features threaded ends for easy installation. Nibco ball valves are backed by the Nibco Inc. 5-years 125% limited warranty.

  • Lead-free
  • Silicon performance bronze body, ball and stem
  • Blowout-proof stem design
  • Nibco HydraPure lead-free markings on handle and body
  • Dezincification-resistant
  • Double oval in body casting, white handle and blue hang tag lead-free markings
  • Zinc-plated steel handle nut, brass pack gland, reinforced PTFE thrust washer and (2) seat ring, silicon bronze end-piece

Standards/Certifications: MSS SP-110, ANSI/NSF 61-8 annexure F and G, ANSI/NSF 372 certified, IAPMO/ANSI Z1157, IAPMO IGC-15, cUPC listed

Applications: For human consumption including commercial and residential construction
