Nibco NL9950C

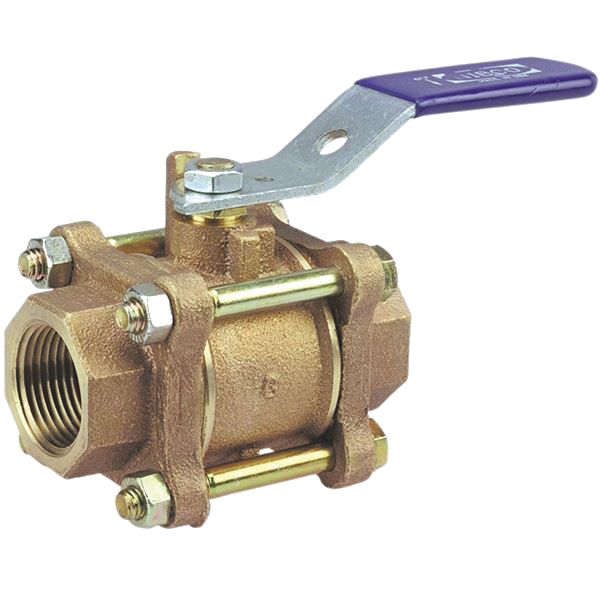

T-595-Y Bronze 3-Piece Full-Port Ball Valve, 1-1/2 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: T595Y.112
  • MPN: NL9950C
  • UPC: 039923686596
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Hard Chrome-Plated Brass
Connection Size      :      1-1/2 in
Connection Type      :      FNPT
Dimension      :      4.56 in L x 3 in W
Item Name      :      Ball Valve
Material Specifications      :      ASTM B16, C36000, ASTM B371, C69430, ASTM B99, C65100, ASTM B584, C84400, ASTM B124, C37700, ASTM A449 Grade 5
Material      :      Bronze
Model      :      T-595-Y
Operator Type      :      Plastisol Coated Clear Chromate Zinc-Plated Steel Lever Handle
Packaging Material      :      PTFE
Pressure Rating      :      600 psi CWP Non-Shock, 150 psi Saturated Steam
Seal Material      :      PTFE
Seat Material      :      PTFE
Stem Material      :      Silicon Bronze
Temperature Rating      :      400 deg F
Trim Material      :      Bronze
Type      :      3-Piece, Full-Port

The Nibco bronze ball valve provides bubble-tight shutoff at 600 psi. The 3-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. The Nibco bronze ball valve provides ease of operation with quarter-turn (90 deg) open to close. The PTFE seat ring and brass hard chrome-plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The 3-piece valve features threaded ends for easy installation. Options include Nib-Seal insulated handle that eliminates condensate. Nibco ball valves are backed by the Nibco Inc. 5-years 125% limited warranty.

  • Blowout-proof stem design
  • Dezincification-resistant
  • Zinc-plated steel handle nut, brass threaded pack gland, fluorocarbon rubber O-ring seal, reinforced PTFE thrust washer and PTFE seat ring, zinc dichromate-plated steel bolts and nuts

Standards/Certifications: MSS SP-110 certified

Applications: For hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water
