Honeywell T8034N1007/U

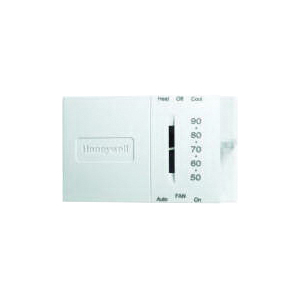

T8034N Mercury-Free Premier White Non-Programmable Thermostat, 20 - 30 VAC, 1 Heat/1 Cool

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: T8034N1007
  • MPN: T8034N1007/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      Plus/Minus 2 deg F
Amperage Rating      :      0.18 - 7.5 A
Changeover      :      Manual
Color      :      Premier White
Dimension      :      4-3/4 in W x 2-7/8 in H x 1-3/8 in D
Item Name      :      Non-Programmable Thermostat
Mounting      :      Horizontal
Programmability      :      Non-Programmable
Sensing Element      :      Bimetal
Series      :      T8034N
Setting Temperature      :      45 - 95 deg F
Stages      :      1 Heat/1 Cool
Switch Position      :      HEAT-OFF-COOL (System), AUTO-ON (Fan)
Switch Type      :      SPDT, Precision Snap Action
Terminal Designation      :      R, RC, W, Y, G, O, B
Type      :      Mercury-Free
Voltage Rating      :      20 - 30 VAC

Meet all current and future mercury-free thermostat compliance needs with Honeywell's mercury-free econostat. With a sleek, attractive appearance, the mercury-free econostat is the perfect electromechanical replacement choice.

  • Integrated thermometer and temperature setting scale
  • Mount directly on wall or outlet box
  • Easy to install - front wired with the same foot-print as the mercury switching model
  • Attractive design - sleek, appealing look that pleases homeowners

Applications: For conventional systems and heat pumps with no auxiliary heat
