Nibco NL998H5

T-FP-600A Brass 2-Piece Full-Port Ball Valve, 3/8 in, FNPT

  • Manufacturers: NIBCO
  • Brand Name: Nibco
  • PN: TFP600.38
  • MPN: NL998H5
  • UPC: 039923276599
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Chrome-Plated Brass
Connection Size      :      3/8 in
Connection Type      :      FNPT
Dimension      :      1.76 in L
Item Name      :      Ball Valve
Material Specifications      :      C46500
Material      :      Brass
Model      :      T-FP-600A
Operator Type      :      Plated Steel Lever Handle
Pressure Rating      :      600 psi CWP Non-Shock
Seat Material      :      PTFE
Stem Material      :      Brass
Type      :      2-Piece, Full-Port

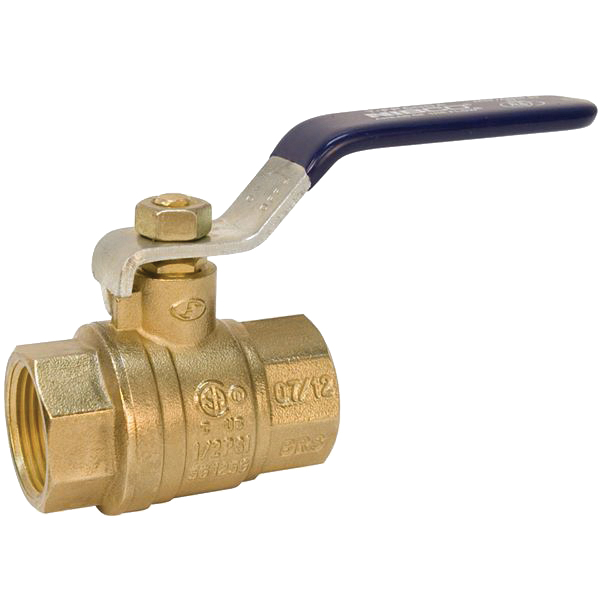

The Nibco brass ball valve with threaded end connections provides bubble-tight shutoff. The valve's PTFE seats and hard chrome-plated brass ball exhibit high chemical resistance properties. The valve is ideal for hot/cold water and gas applications. The Nibco brass ball valve provides ease of operation with quarter-turn (90 deg) open to close. The 2-piece valve features threaded end connections for easy installation. Nibco specialty valves are backed by a Nibco Inc. 2-years limited warranty.

  • Blowout-proof stem design
  • Forged brass end cap, Fluorocarbon O-ring, brass packing nut, stainless steel lock washer and handle nut

Standards/Certifications: ASME B16.44, ASME B13 .44, CR91-002 certified, FM approved, cUPC, cCSAus, UL YQNZ, YRBX, YRPV, YSDT, MHKZ listed

Applications: For hot/cold water and gas applications
