Honeywell TH4110U2005/U
Send Print
  1. pin-int

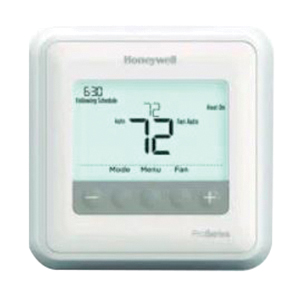

Honeywell TH4110U2005/U

T4 Pro White Programmable Thermostat, 20 - 30 VAC, 7, 5-1-1, 5 - 2 days, 1 Heat/1 Cool

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: TH4110U2005
  • MPN: TH4110U2005/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Accuracy      :      0.5 deg C
Amperage Rating      :      0.02 - 1 A Running and Heat, 0.02 - 0.05 A Fan
Changeover      :      Auto/Manual
Color      :      White
Differential Temperature      :      Plus/Minus 1 deg F
Dimension      :      4-1/16 in L x 4-1/16 in W x 1-3/32 in D
Display Type      :      Medium LED Backlit, Soft Key Control
Frequency Rating      :      50/60 Hz
Humidity Rating      :      5 - 90% Relative Humidity, Non-Condensing
Item Name      :      Programmable Thermostat
Model      :      T4 Pro
Mounting      :      UWP
Power Source      :      Battery/Hardwired
Programmability      :      7, 5-1-1, 5 - 2 days or Non-programmable
Series      :      TH4110U
Setting Temperature      :      40 - 90 deg F Heat, 50 - 99 deg F Cool
Stages      :      1 Heat/1 Cool
Switch Position      :      HEAT-OFF-COOL-AUTO (System), AUTO-ON (Fan)
Switch Type      :      Relay
Temperature Rating      :      37 - 102 deg F Operating, -20 to 120 deg F Storage
Voltage Rating      :      20 - 30 VAC

The T series programmable thermostat streamlines everything from product selection and installation to customer service and support. With a standard footprint and simple interface, the T Series will enhance the entire thermostat experience for you and your customers alike.

  • Uses the UWP mounting system that's standard across all T series thermostats
  • Easy upsell to a connected Lyric T6 PRO Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
  • Simple pushbutton functionality
  • Filter change reminders
  • 5-years warranty
  • 3.93 sq-in display
  • Includes thermostat, UWP mounting system, installation (J-box) adaptor

Applications: For standard efficient gas forced air, high-efficacy gas forced air, oil forced air, electric forced air, hot water fan coil, geothermal heat pump, air to air heat
