SharkBite

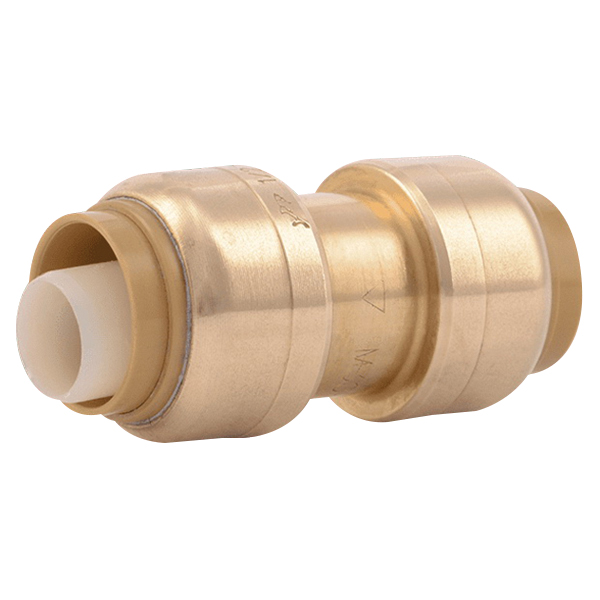

Natural Brass Coupling, 1/2 in CTS, Push-to-Connect, Lead-Free

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: UR008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in CTS
Connection Type      :      Push-to-Connect
Finish      :      Natural
Item Name      :      Coupling
Length      :      2 in
Material      :      Brass
Pressure Rating      :      200 psi
Temperature Rating      :      200 deg F

Innovative push-to-connect design makes for quick and easy installation. Connect 2-pieces of PEX, copper, CPVC, PE-RT or HDPE pipe in any combination. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

  • DZR lead-free brass body, EPDM O-ring, stainless steel grab ring, polysulfone tube support liner
  • No special tools, crimping, glue or soldering required
  • Can be installed in wet lines
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • Remove using a disconnect clip or disconnect tongs (both sold separately)
  • Potable water service
  • 25-years warranty

Standards/Certifications: NSF/ANSI 14, 61 and 372 certified, ASSE 1061, IAPMO listed, UPC, IPC and cUPC codes, CSA B125.3 certified, CAN/ULC S102.2 and S101 certified, UL263 listed, ASTM E84, ASTM E119

Applications: For use with PEX, copper, CPVC, PE-RT and HDPE pipe in any combination

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28470_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28470_Spec.pdf
