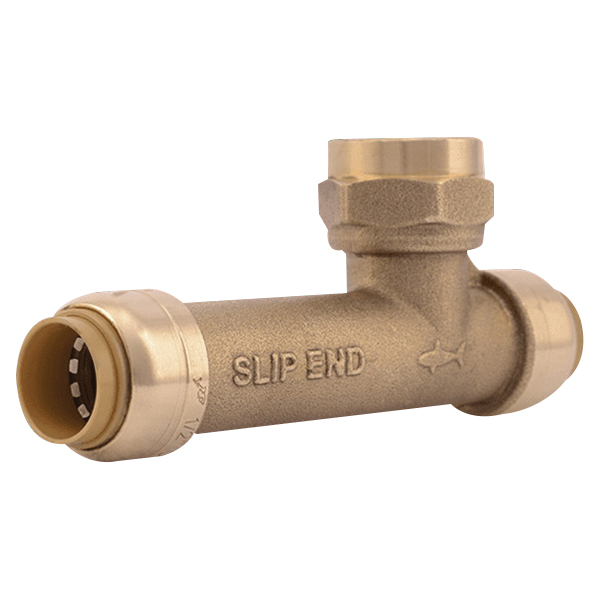

Innovative push-to-connect design makes for quick and easy installation. Slip feature allows for 2 in of rigid copper or CPVC pipe to be cut out of an existing line and connected back together with the Disconnect Clip to slide the fitting back to the other end of pipe. Easily screw in the expansion tank into the middle FNPT threaded branch after installing the tee into the line. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.

• DZR lead-free brass body, EPDM O-ring, stainless steel grab ring, polysulfone tube support liner
• Ideal solution for adding a water heater expansion tank to an existing line
• A disconnect clip or disconnect tongs are required to use this product
• No special tools, crimping, glue or soldering is needed
• Can be rotated after assembly for easier and faster installation
• Potable water service
• 25-years warranty

Standards/Certifications: NSF/ANSI 14, 61 and 372 certified, ASSE 1061, IAPMO listed, UPC, IPC and cUPC codes, CSA B125.3 certified, CAN/ULC S102.2 and S101 certified, UL263 listed, ASTM E84, ASTM E119

Applications: For copper and CPVC pipes

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28470_Cat.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS28470_Spec.pdf
