Jones Stephens C76807

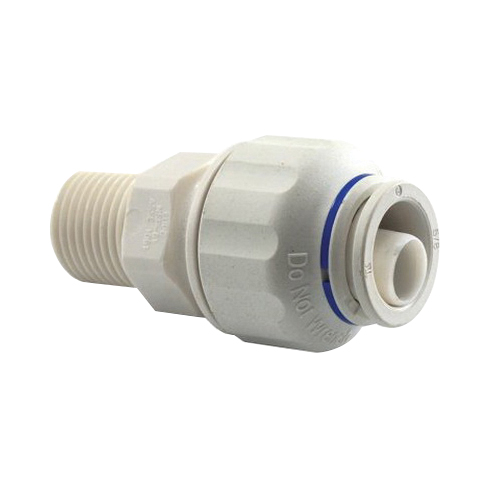

Twist-to-Lock Plastic Adapter, 1/2 in, Push-On x MIP

  • Manufacturers: Jones Stephens Corporation
  • Brand Name: Jones Stephens
  • PN: C76-807
  • MPN: C76807
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      Push-On x MIP
Item Name      :      Adapter
Material      :      Plastic
Pressure Rating      :      200 psi
Sub Brand      :      Twist-to-Lock
Temperature Rating      :      0 - 200 deg F
  • Reduced installation time
  • Ideal for service and repair
  • "O-ring" design for leak-free seals
  • Features twist-to-lock security - water-tight connections with copper, CPVC and PEX tubing
  • No need for expensive crimping tools or messy solvents
  • Can be disconnected in case of installation error
  • No curing time

Standards/Certifications: ASSE 1068, cUPC, IAPMO listed, ANSI/NSF 61 certified

Applications: For use with hot and cold potable water
