DiversiTech 4JR1060

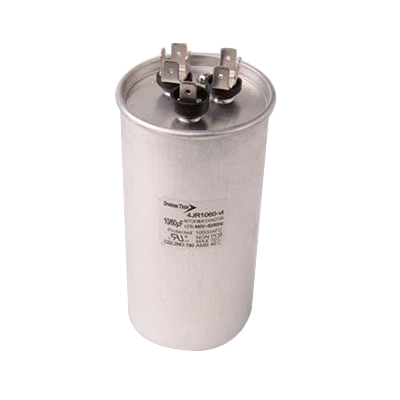

Round Metal Motor Dual Run Capacitor, 60/10 uF, 440 VAC

  • Manufacturers: DiversiTech Corporation
  • Brand Name: DiversiTech
  • PN: CAP60104
  • MPN: 4JR1060
  • UPC: 0095247072132
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Average Life      :      10000 hr
Case Height      :      4-3/4 in
Case Material      :      Metal
Diameter      :      2-3/4 in
Frequency Rating      :      50/60 Hz
Item Name      :      Motor Dual Run Capacitor
MFD Rating      :      60/10 uF
Shape      :      Round
Temperature Rating      :      -40 to 70 deg C
Terminal Type      :      1/4 in Quick-Connect
Voltage Rating      :      440 VAC
  • Guaranteed for 10000 hr of life under normal operating conditions
  • Operating life of 94% at 60000 hr
  • Meets 10000 AFC safety requirement per UL 810
  • Capacitance tolerance plus/minus 5%
  • Individually packaged
  • Maximum permissible voltage - 110% of the rated voltage
  • Maximum permissible current - 130% of the rated current
  • Oil-filled and non-PCB

Standards/Certifications: cRUus listed, CSA 22.2 190 certified, IEC 60252, UL 810 listed
