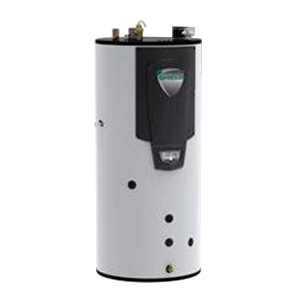

The Shield commercial water heater features an advanced water heating system beautifully packaged for the smallest possible footprint. The Shield is available in 8 models in standard and ASME construction. All utility connections are located at the top of the appliance to reduce equipment room footprint and increase installation flexibility. The smart control offers a bright, clear LCD display with soft key buttons and a wide variety of advanced control functions. Additionally, a large removable pump access panel as well as the control can be found in the front of the cabinet making serviceability a snap.

• No-efficiency loss from lime scale
• Virtually silent operation
• CON.X.US remote connect capable
• Modulating burner with 5:1 turn-down
• Operates at temperatures up to 180 deg F for sanitizing applications
• Stainless steel heat exchanger
• Glass lined steel tank
• Magnesium anode rods
• Zero clearances to combustible materials
• Certified for installation on combustible floors
• PVC, CPVC, polypropylene and stainless steel venting up to 100 equivalent ft
• Direct vent sealed combustion
• Rooftop and sidewall venting
• Side wall vent termination
• Advanced smart control
• Low-NOx operation
• Low gas pressure operation
• Full port brass drain valve
• 8 ft power cord
• 3 in air inlet
• Direct spark ignition
• 3-years limited tank and 1-year limited parts warranty

Standards/Certifications: AHRI, CSA certified, ASME HLW stamped
