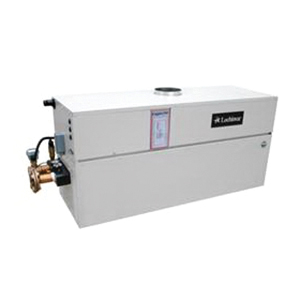

Lochinvar CBN0647
Copper-Fin Commercial Natural Gas Boiler, 645000 Btu/hr Input, 522000 Btu/hr Output, 81% AFUE
- Manufacturers: A. O. Smith Corporation
- Brand Name: Lochinvar
- PN: CBN0647
- MPN: CBN0647
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| AFUE | : | 81% |
| BTU Rating | : | 645000 Btu/hr Input, 522000 Btu/hr Output |
| Connection Size | : | 1-1/4 in Gas, 2 in Water |
| Dimension | : | 56-3/4 in W x 31-1/2 in H x 22-1/4 in D |
| Fuel Type | : | Natural Gas |
| Item Name | : | Gas Boiler |
| Net BTU Rating | : | 454000 Btu/hr |
| Pressure Rating | : | 160 psi |
| Sub Brand | : | Copper-Fin |
| Type | : | Commercial |
| Vent Size | : | 8 in |
Lochinvar first introduced Copper-Fin technology to the boiler industry some 50-years ago. Since then, we've continued to refine and perfect it adding advanced fan-assisted combustion, hot surface ignition, a unique gasketless copper finned tube heat exchanger and highly efficient insulating materials.
- 81% thermal-efficiency
- Electronic temperature control
- Fan assisted combustion
- Sealed combustion chamber
- Stainless steel burners
- ASME copper finned tube heat exchanger
- Gasketless heat exchanger design
- Pump relay with delay
- Down stream test valve
- Referenced gas valves
- Loch heat ceramic tile combustion chamber
- Hot surface ignition
- Adjustable high limit with manual reset
- 50 psi ASME pressure relief valve
- Temperature and pressure gauge
- Flow switch
- 24 V control system
- BMS terminal strip
- Combustion air filter
- Freeze protection
- 10-years limited warranty on heat exchanger
Standards/Certifications: AHRI, CSA certified, ASME H stamped
