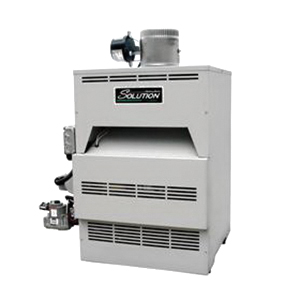

Lochinvar CBN135
Solution Residential Natural Gas Fired Heating Boiler, 135000 Btu/hr Input, 112000 Btu/hr Output, 84% AFUE
- Manufacturers: A. O. Smith Corporation
- Brand Name: Lochinvar
- PN: CBN135
- MPN: CBN135
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| AFUE | : | 84% |
| Amperage Rating | : | 2 A |
| BTU Rating | : | 135000 Btu/hr Input, 112000 Btu/hr Output |
| Connection Size | : | 1/2 in Gas, 1-1/2 in Water |
| Dimension | : | 19-1/2 in W x 29-1/2 in H x 21-1/2 in D |
| Fuel Type | : | Natural Gas |
| Item Name | : | Gas Fired Heating Boiler |
| Net BTU Rating | : | 97000 Btu/hr |
| Pressure Rating | : | 160 psi |
| Sub Brand | : | Solution |
| Type | : | Residential |
| Vent Size | : | 6 in |
| Voltage Rating | : | 120 VAC |
- ASME copper finned tube heat exchanger
- Gasketless heat exchanger design
- Built-in performance loop
- Vertical water connections
- 24 V control system
- Self diagnostic ignition control
- Terminal strip
- 2-stage solid state temperature control
- Outdoor reset with sensor
- Domestic hot water prioritization
- 2-stage gas valve with built-in manual shut-off
- Pump relay
- Automatic reset high limit
- ASME pressure relief valve
- Temperature and pressure gauge
- Automatic vent damper
- Built-in draft diverter
- Stainless steel burners
- Loch heat ceramic tile combustion chamber
- 2-stage, intermittent spark ignition (standard)
- 20-years limited warranty on heat exchanger and 2-years parts warranty
Standards/Certifications: AHRI, CSA certified, ASME H stamped
