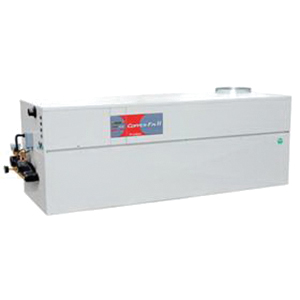

Lochinvar CFN0402PM
Copper-Fin II Commercial High-Efficiency Natural Gas Water Heater, 399000 Btu/hr, 412 gph at 100 deg F Rise
- Manufacturers: A. O. Smith Corporation
- Brand Name: Lochinvar
- PN: CFN0402PM
- MPN: CFN0402PM
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Oversized
| BTU Rating | : | 399000 Btu/hr |
| Connection Size | : | 1-1/4 in Gas, 2 in Water |
| Dimension | : | 37-3/4 in W x 31-1/2 in H x 22-1/4 in D |
| Efficiency | : | 85% |
| Flow Rate | : | 412 gph at 100 deg F Rise |
| Fuel Type | : | Natural Gas |
| Item Name | : | Gas Water Heater |
| Pressure Rating | : | 160 psi |
| Sub Brand | : | Copper-Fin II |
| Type | : | High-Efficiency, Commercial |
| Vent Size | : | 6 in |
- 82% thermal-efficiency
- Proportional firing up to 4:1 turn-down
- Hot surface ignition
- Low NOx approval
- Sealed combustion
- Low gas pressure operation
- Vertical and horizontal venting category I venting double wall "B" vent category IV sidewall venting AL29-4C stainless steel vent
- ASME copper finned tube heat exchanger
- Gasketless design
- On/off Switch
- Combustible floor rated
- Adjustable high limit with manual reset
- Circulating pump
- 150 psi ASME temperature and pressure relief valve
- Smart system operating control - 2-Line/16-character LCD display
- Built-in cascading sequencer for up to 8 water heaters
- Front end loading capability with armor water heaters
- Building management system integration with 0 - 10 VDC input, 0 - 10 VDC rate output
- Inlet and outlet temperature read-out
- Freeze protection
- Programmable system efficiency optimizers
- High voltage terminal strip - 120 VAC/60 Hz/1 ph power supply
- Low voltage terminal strip - 24 VAC auxiliary device relay
- Pump mount
- 1-year warranty on parts and 5-years limited warranty
Standards/Certifications: AHRI, CSA certified, ASME H stamped
